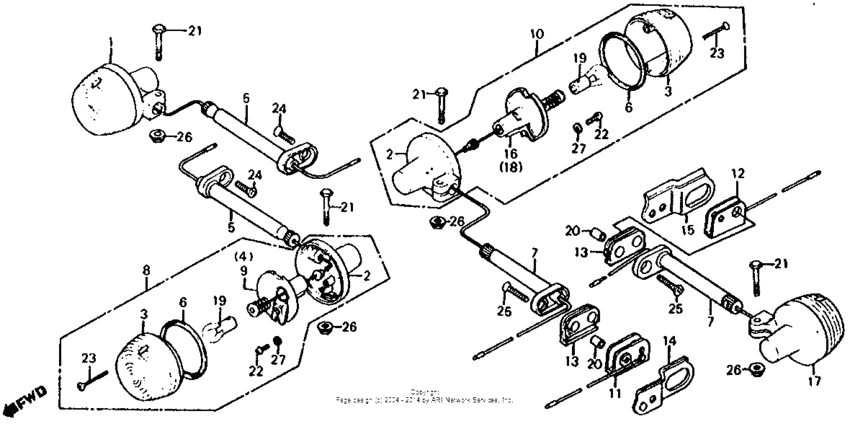

Turn signal 81-85 Diagram Honda XL100
- Year
- 1979
- Model code
- XL100S A
- Sales region
- USA
- Frame
- HD015002640 - HD015012036
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33400-436-670
Winker., r. fr.
|
33400-436-670 |
— | ||
|
2
|
2
33401-341-701 Base,winker |
33401-341-701 |
from US $40.94 |
||
|
3
|
3
33402-268-672 Lens,winker |
33402-268-672 |
from US $10.66 |
||
|
4
|
4
33410-056-671
Socket r fr wink
|
33410-056-671 |
— | ||
|
5
|
5
33441-436-000
Stay, fr.
|
33441-436-000 |
— | ||
|
6
|
6
33443-268-671 Packing,lens |
33443-268-671 |
from US $2.44 |
||
|
7
|
7
33444-436-000
Stay, rr.
|
33444-436-000 |
— | ||
|
8
|
8
33400-436-679
Winker assy 74ie
|
33400-436-679 |
— | ||
|
9
|
9
33460-056-671
Socket, l.
|
33460-056-671 |
— | ||
|
10
|
10
33600-436-679
Winker assy 74ie
|
33600-436-679 |
— | ||
|
11
|
11
33604-436-670
Stopper, r. rr.
|
33604-436-670 |
— | ||
|
12
|
12
33605-436-670
Stopper, l. rr.
|
33605-436-670 |
— | ||
|
13
|
13
33606-074-010 Mount rumber |
33606-074-010 |
from US $5.18 |
||
|
14
|
14
33606-436-000 Stay, r. rr. |
33606-436-000 |
US $26.10 |
||
|
15
|
15
33607-436-000 Stay, l. rr. |
33607-436-000 |
US $26.10 |
||
|
16
|
16
33610-436-670
Socket, r.
|
33610-436-670 |
— | ||
|
17
|
17
33650-436-670
Winkerassy.,l.rr.
|
33650-436-670 |
— | ||
|
18
|
18
33660-436-670
Socket, l.
|
33660-436-670 |
— | ||
|
19
|
19
34905-358-003 Bulb, winker lt. |
34905-358-003 |
from US $3.40 |
||
|
20
|
20
80108-061-010 Collar a, rr. fender |
80108-061-010 |
from US $3.40 |
||
|
21
|
21
93000-060-280-A Bolt,hex.,6x28 |
93000-060-280-A |
US $0.52 |
||
|
22
|
22
93500-050-080-H ScrewPAN, 5X8 |
93500-050-080-H |
from US $0.37 |
||
|
23
|
23
93700-030-250-B Screw cross 3x25 |
93700-030-250-B |
from US $0.55 |
||
|
24
|
24
93700-060-200-G
Screw,oval,6x20
|
93700-060-200-G |
— | ||
|
25
|
25
93700-060250G
Screw, oval (6x25)
|
93700-060250G |
— | ||
|
26
|
26
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
27
|
27
94111-05800 WasherSPRING, 5MM |
94111-05800 |
from US $0.37 |
