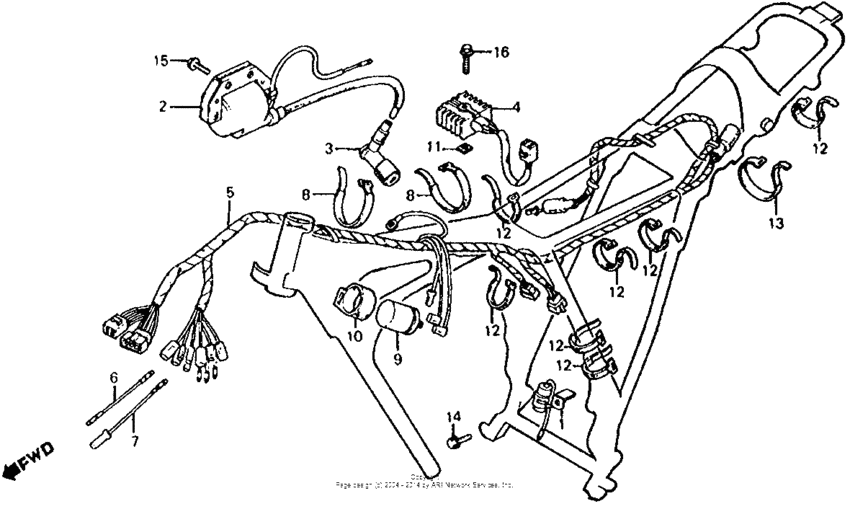

Wire harness + ignition coil 79-80 Diagram Honda XL100
- Year
- 1979
- Model code
- XL100S A
- Sales region
- USA
- Frame
- HD015002640 - HD015012036
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30250-436-000
Condenser comp.
|
30250-436-000 |
— | ||
|
2
|
2
30530-382-871
Coil ignition
|
30530-382-871 |
— | ||
|
3
|
3
30700-152-163 Cap assy. |
30700-152-163 |
from US $17.41 |
||
| replacement | |||||
|
3
|
3
30700-KE2-942 Cap, spark plug |
30700-KE2-942 |
from US $21.78 |
||
|
4
|
4
31700-385-000
Silicon assy.
|
31700-385-000 |
— | ||
|
5
|
5
32100-436-010
Wire harness
|
32100-436-010 |
— | ||
|
6
|
6
32101-385-000
Sub cord, a
|
32101-385-000 |
— | ||
|
7
|
7
32102-385-000
Sub cord, b
|
32102-385-000 |
— | ||
|
8
|
8
32161-399-000 Band, cable |
32161-399-000 |
US $4.17 |
||
|
9
|
9
38300-GF0-405 Relay, turn signal (FR-2208) |
38300-GF0-405 |
from US $53.72 |
||
|
10
|
10
38306-292-000 Suspension |
38306-292-000 |
from US $4.07 |
||
|
11
|
11
90356-437-000
Nut,6mm
|
90356-437-000 |
— | ||
|
12
|
12
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
|
13
|
13
9501461200 Band a2, wire |
9501461200 |
from US $1.24 |
||
|
14
|
14
95700-060-100-8 BoltFLANGE, 6X10 |
95700-060-100-8 |
US $24.80 |
||
| replacement | |||||
|
14
|
14
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
14
|
14
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
15
|
15
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
16
|
16
95701-060-280-8 BoltFLANGE, 6X28 |
95701-060-280-8 |
from US $0.74 |
||
