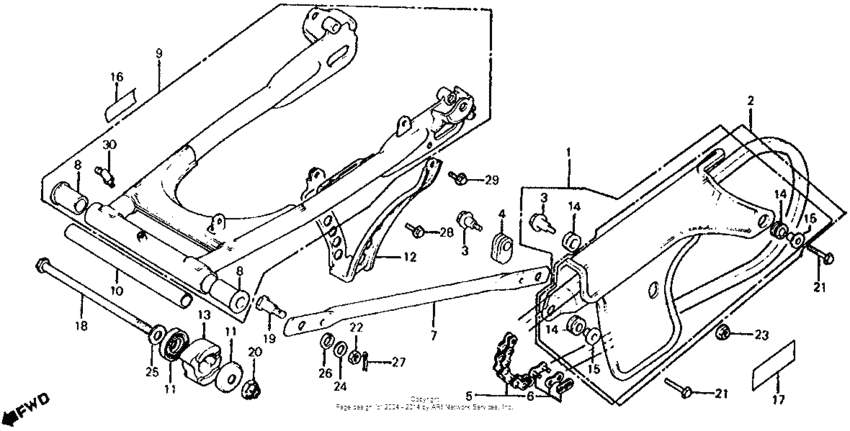

Xl100s swingarm + chain guard 79-80 Diagram Honda XL100
- Year
- 1979
- Model code
- XL100S A
- Sales region
- USA
- Frame
- HD015002640 - HD015012036
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40510-446-000
Case,drive chain
Use up to Frame SN 5005179 |
40510-446-000 |
— | ||
|
3
|
3
40512-437-000 Bolt,chain case |
40512-437-000 |
US $7.55 |
||
|
5
|
5
40530-KC2-961 Chain, drive |
40530-KC2-961 |
from US $56.30 |
||
|
6
|
6
40531-237-680 Joint,drive.chain |
40531-237-680 |
from US $5.56 |
||
| replacement | |||||
|
6
|
6
40531-355-013 Master link |
40531-355-013 |
from US $6.56 |
||
|
6
|
6
40531-355-003 Joint,chain |
40531-355-003 |
from US $4.01 |
||
|
6
|
6
40531-355-013 Master link |
40531-355-013 |
from US $6.56 |
||
|
6
|
6
40533-943-003 Joint,rj.chain |
40533-943-003 |
from US $4.01 |
||
|
6
|
6
40531-437-602
Master link
|
40531-437-602 |
— | ||
|
7
|
7
43431-437-000 Arm,rr. brake |
43431-437-000 |
from US $14.92 |
||
|
8
|
8
52109-360-310 Bush,pivot thrust |
52109-360-310 |
from US $22.58 |
||
|
9
|
9
52110-437-672ZA Fork,rr.*nh-1* |
52110-437-672ZA |
US $470.27 |
||
|
10
|
10
52141-437-010 Collar,rr fork |
52141-437-010 |
from US $25.16 |
||
|
11
|
11
52144-360-005 Cap |
52144-360-005 |
from US $6.96 |
||
|
12
|
12
52156-437-671
Guard,chain
|
52156-437-671 |
— | ||
|
13
|
13
52170-437-000 Slider,chain |
52170-437-000 |
from US $11.54 |
||
|
14
|
14
61103-357-000 Rubber, fr. fender mounting |
61103-357-000 |
from US $0.14 |
||
|
15
|
15
61105-428-000
Collar, rr. fender
|
61105-428-000 |
— | ||
|
16
|
16
87504-028-670 Mark, caution |
87504-028-670 |
from US $4.57 |
||
|
17
|
17
87505-436-670
Label, tire caution
|
87505-436-670 |
— | ||
|
18
|
18
90121-KF9-900 Bolt,rr fork pvot |
90121-KF9-900 |
US $23.99 |
||
|
19
|
19
90133-331-770 Bolt, rr |
90133-331-770 |
US $4 |
||
|
20
|
20
90353-045-000 Nut,self lock |
90353-045-000 |
from US $4.44 |
||
|
21
|
21
93500-060220A Screw, pan (6x22) |
93500-060220A |
from US $0.52 |
||
|
22
|
22
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
23
|
23
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
24
|
24
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
25
|
25
94101-12000 WasherPLAIN, 12MM |
94101-12000 |
from US $0.52 |
||
|
26
|
26
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
27
|
27
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
28
|
28
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
29
|
29
95701-060-140-8 BoltFLANGE, 6X14 Use from Frame SN 5010295 |
95701-060-140-8 |
from US $0.52 |
||
|
29
|
29
95701-060-160-8 BoltFLANGE, 6X16 Use up to Frame SN 5010294 |
95701-060-160-8 |
from US $0.38 |
||
|
30
|
30
9620160000 Fitting (c.76) |
9620160000 |
from US $1.85 |
||
