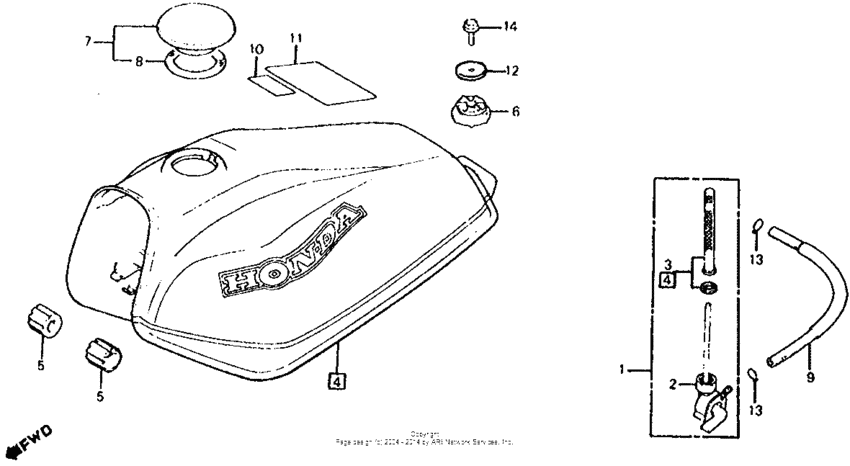

Fuel tank 81 Diagram Honda XL100
- Year
- 1981
- Model code
- XL100S A
- Sales region
- USA
- Frame
- JH2HD050*BK000011 - JH2HD050*BK003939
- Engine Capacity
- 100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-GF6-015 Cock assy,fuel |
16950-GF6-015 |
from US $31.69 |
||
|
2
|
2
16951-GF6-005
Body set, petcock
|
16951-GF6-005 |
— | ||
|
3
|
3
16953-155-305
Screen set
|
16953-155-305 |
— | ||
|
4
|
4
17540-195-770ZA
Tank, fuel *r110*
|
17540-195-770ZA |
— | ||
|
5
|
5
17611-HA5-000 Rubber, fr |
17611-HA5-000 |
from US $4.74 |
||
|
6
|
6
17613-KA8-000
Rub, rr. fuel tank
|
17613-KA8-000 |
— | ||
|
7
|
7
17620-195-771 Cap,fuel |
17620-195-771 |
US $39.30 |
||
|
8
|
8
17632-176-771 Gasket |
17632-176-771 |
US $9.16 |
||
| replacement | |||||
|
8
|
8
17632-176-772 Gasket |
17632-176-772 |
from US $6.02 |
||
|
9
|
9
17681-GZ9-000
Tube, fuel (4.5x180)
|
17681-GZ9-000 |
— | ||
|
10
|
10
87510-147-670ZA Label *nh1* |
87510-147-670ZA |
from US $4.22 |
||
|
11
|
11
87560-181-760ZE Mark (typeb) |
87560-181-760ZE |
from US $3.92 |
||
|
11
|
11
87560-181-760ZD
Label *nh1*
|
87560-181-760ZD |
— | ||
|
12
|
12
90136-428-870 Washer, tank setting |
90136-428-870 |
from US $2.37 |
||
|
13
|
13
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
||
|
14
|
14
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
