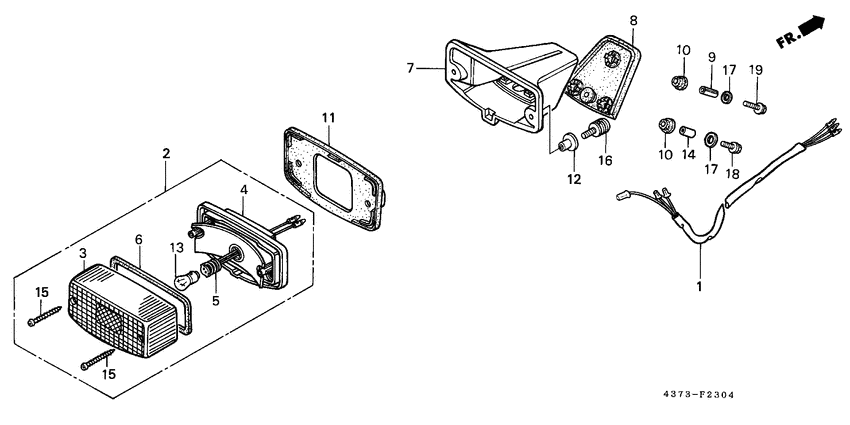

Taillight (5) Diagram Honda XL125 XL125S
- Year
- 1985
- Model code
- XL125SF
- Sales region
- France
- Frame
- L125S5500001 - L125S5504616
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32101-GC5-000 Harness a,sub |
32101-GC5-000 |
from US $13.87 |
||
|
2
|
2
33701-KB1-611
Unit,taillight
|
33701-KB1-611 |
— | ||
|
3
|
3
33702-KB7-003 Lens,taillight |
33702-KB7-003 |
US $27.74 |
||
|
4
|
4
33703-MC4-601
Socket,taillight
|
33703-MC4-601 |
— | ||
|
5
|
5
33708-147-003 Cable, taillight |
33708-147-003 |
US $7.62 |
||
|
6
|
6
33709-KB7-003 Gasket |
33709-KB7-003 |
from US $3.18 |
||
|
7
|
7
33712-KB1-610
Brkt,tail light
|
33712-KB1-610 |
— | ||
|
8
|
8
33712-KG1-000 Rubber base seat |
33712-KG1-000 |
US $12.28 |
||
|
9
|
9
33714-KG1-000
Collar,tail light
|
33714-KG1-000 |
— | ||
|
10
|
10
33714-MC4-610 Rub.,tail.brkt. |
33714-MC4-610 |
US $3.40 |
||
| replacement | |||||
|
10
|
10
33714-KR5-000
Rubber
|
33714-KR5-000 |
— | ||
|
11
|
11
33718-KF9-670 Gasket, taillight |
33718-KF9-670 |
US $7.25 |
||
|
12
|
12
33719-KB7-000 Collar,tail.pkg. |
33719-KB7-000 |
US $5.87 |
||
|
13
|
13
34905-149-611 Bulb,tail stop lt |
34905-149-611 |
US $5.10 |
||
|
14
|
14
77209-177-620 Collar,rub.settin |
77209-177-620 |
from US $2.79 |
||
|
15
|
15
90105-GA7-003 Screw, tap (4x40) |
90105-GA7-003 |
from US $2.22 |
||
|
16
|
16
93893-050-160-0 Screw-washer5X16 |
93893-050-160-0 |
from US $0.44 |
||
|
17
|
17
94103-06000 WasherPLAIN, 6MM |
94103-06000 |
from US $0.37 |
||
|
18
|
18
95700-060-280-8 BoltFLANGE, 6X28 |
95700-060-280-8 |
from US $0.59 |
||
| replacement | |||||
|
18
|
18
95701-060-280-8 BoltFLANGE, 6X28 |
95701-060-280-8 |
from US $0.74 |
||
|
19
|
19
95700-060-320-8 BoltFLANGE, 6X32 |
95700-060-320-8 |
from US $0.59 |
||
| replacement | |||||
|
19
|
19
95701-060-320-8 BoltFLANGE, 6X32 |
95701-060-320-8 |
from US $0.59 |
||
