Battery Diagram Honda XL125 XL125S
- Year
- 1990
- Model code
- XL125SL-DK
- Sales region
- Total (km / h)
- Frame
- L125S5700001 - L125S5999999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?

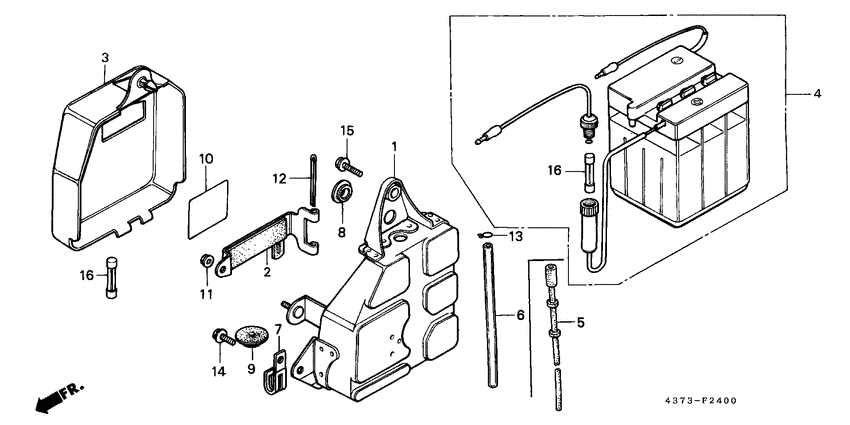

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17232-427-700 Tray,battery |
17232-427-700 |
US $67.46 |
||
|
2
|
2
17233-437-000 Hinge,battery box |
17233-437-000 |
US $13.91 |
||
|
3
|
3
17234-437-000 Cover,battery box |
17234-437-000 |
US $27.88 |
||
|
4
|
4
31500-437-751 Battery,6n4- 5703200 |
31500-437-751 |
US $27.97 |
||
| replacement | |||||
|
4
|
4
31500-435-671AH
Battery (6n4-2a-4)
- 5703200 |
31500-435-671AH |
— | ||
|
4
|
4
31500-437-752
Battery,6n4
5703201 - |
31500-437-752 |
— | ||
|
6
|
6
31502-427-960 Tube,batt,breathr |
31502-427-960 |
US $10.30 |
||
|
7
|
7
80102-292-670
Rubber
|
80102-292-670 |
— | ||
|
8
|
8
83551-376-000 Grommet, side cover |
83551-376-000 |
from US $4.52 |
||
|
9
|
9
83618-323-000 Rubber, battery box |
83618-323-000 |
from US $1.40 |
||
|
10
|
10
87506-427-700 Mark,batt.caution |
87506-427-700 |
US $4.88 |
||
|
11
|
11
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
12
|
12
94201-40600 Pin, cotter (4.0x60) |
94201-40600 |
from US $0.52 |
||
|
14
|
14
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
15
|
15
95700-0602000 Bolt, flange, 6x20 |
95700-0602000 |
from US $0.52 |
||
| replacement | |||||
|
15
|
15
95701-060-200-0 Bolt |
95701-060-200-0 |
from US $0.52 |
||
|
16
|
16
9820011000 Fuse a (10a) |
9820011000 |
from US $0.59 |
||
