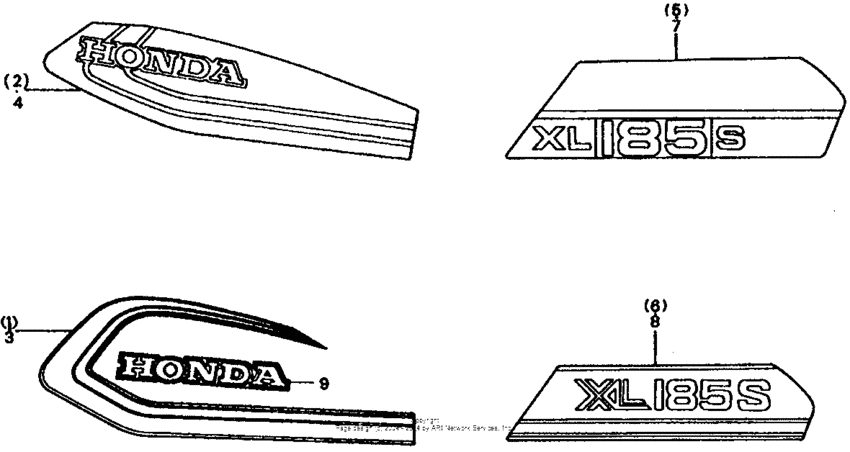

Stripe + emblem 79-80 Diagram Honda XL185
- Year
- 1979
- Model code
- XL185S A
- Sales region
- USA
- Frame
- L185S5001103 - L185S5017934
- Engine Capacity
- 185
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
17511-437-300ZA
Stripe tank*a-85*
|
17511-437-300ZA |
— | ||
|
2
|
2
17511-437-300ZB
Stripe tank*a-38*
|
17511-437-300ZB |
— | ||
|
4
|
4
17512-437-300ZA
Stripe tank*a-85*
|
17512-437-300ZA |
— | ||
|
4
|
4
17512-437-300ZB
Stripe tank*a-38*
|
17512-437-300ZB |
— | ||
|
5
|
5
87127-427-620ZB
Emblem,cover*a-22
|
87127-427-620ZB |
— | ||
|
7
|
7
87128-427-620ZB
Emblem,air/c*a-22
|
87128-427-620ZB |
— |
