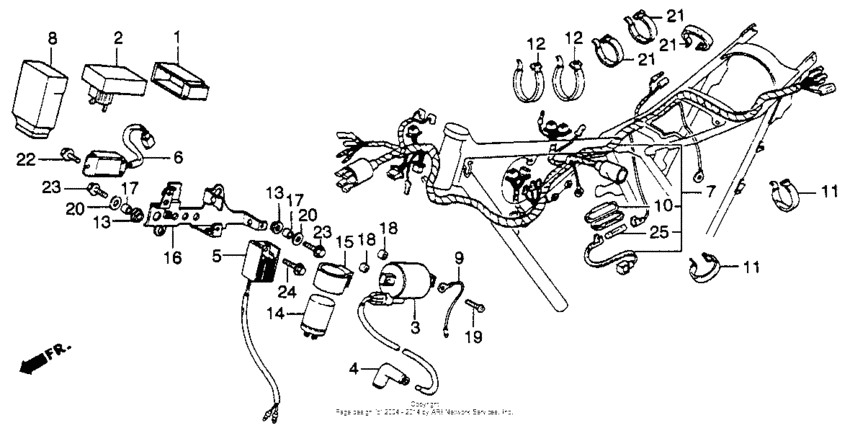

Wire harness + coil 82-83 Diagram Honda XL250
- Year
- 1982
- Model code
- XL250R A
- Sales region
- USA
- Frame
- JH2MD030*CM000002 - JH2MD030*CM007566
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30401-KB4-000 Cushion |
30401-KB4-000 |
from US $5.18 |
||
|
2
|
2
30410-KB7-671
C.d.i.unit comp.
|
30410-KB7-671 |
— | ||
|
3
|
3
30500-VM3-405 Coil assy (cdi)ig |
30500-VM3-405 |
from US $92.85 |
||
|
4
|
4
30700-MA0-163 Cap assy. |
30700-MA0-163 |
from US $24.71 |
||
|
5
|
5
31400-KA2-641
Regulator
|
31400-KA2-641 |
— | ||
|
6
|
6
31600-KS5-000
Rectifier, regulator
|
31600-KS5-000 |
— | ||
|
7
|
7
32100-KB7-670
Wire harness
|
32100-KB7-670 |
— | ||
|
8
|
8
32102-KB7-000
Cover,c.d.i.coupl
|
32102-KB7-000 |
— | ||
|
9
|
9
32111-KB7-000
Sub cord a
|
32111-KB7-000 |
— | ||
|
10
|
10
32111-230-000 Case, fuse connector |
32111-230-000 |
from US $4.88 |
||
|
11
|
11
32161-MA0-000
Band, wire
|
32161-MA0-000 |
— | ||
|
12
|
12
32161-399-000 Band, cable |
32161-399-000 |
US $4.17 |
||
|
13
|
13
32983-028-000 Grommet, wire harness |
32983-028-000 |
from US $1.92 |
||
|
14
|
14
38300-MG2-008 Relay,assy winker |
38300-MG2-008 |
US $53.72 |
||
|
15
|
15
38306-292-000 Suspension |
38306-292-000 |
from US $4.07 |
||
|
16
|
16
50300-KB7-000
Pl,electric base
|
50300-KB7-000 |
— | ||
|
17
|
17
66181-706-000
Collar,distance
|
66181-706-000 |
— | ||
|
18
|
18
90442-035-000 Washer (6mm) |
90442-035-000 |
from US $2.29 |
||
|
19
|
19
93500-050-160-A Screw |
93500-050-160-A |
from US $0.37 |
||
|
20
|
20
94103-06000 WasherPLAIN, 6MM |
94103-06000 |
from US $0.37 |
||
|
21
|
21
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
|
22
|
22
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
23
|
23
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
||
|
24
|
24
95700-060-280-0 BoltFLANGE, 6X28 |
95700-060-280-0 |
from US $0.59 |
||
| replacement | |||||
|
24
|
24
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
|
24
|
24
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
|
25
|
25
9820011000 Fuse a (10a) |
9820011000 |
from US $0.59 |
||
