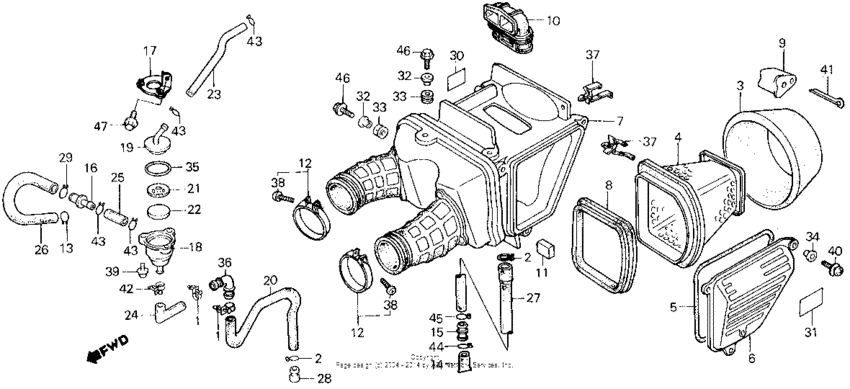

Air cleaner Diagram Honda XL250
- Year
- 1987
- Model code
- XL250R A
- Sales region
- USA
- Frame
- JH2MD110*HK300001 -
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15771-551-000 ClipOIL DRAIN TUBE |
15771-551-000 |
from US $3.67 |
||
|
2
|
2
15772-292-010 Clip, breather tube |
15772-292-010 |
from US $2.15 |
||
|
3
|
3
17213-KL4-000 Element,air/c. |
17213-KL4-000 |
from US $18.60 |
||
|
4
|
4
17214-KL4-000
Holder,element
|
17214-KL4-000 |
— | ||
|
5
|
5
17219-HA2-405 Seal |
17219-HA2-405 |
from US $7.82 |
||
|
6
|
6
17220-KL4-000
Cover,air/c.case
|
17220-KL4-000 |
— | ||
|
7
|
7
17230-KL4-000
Case comp,air/c.
|
17230-KL4-000 |
— | ||
|
8
|
8
17235-KL4-000
Seal,air/c case
|
17235-KL4-000 |
— | ||
|
9
|
9
17236-KL4-000
Stopper.element
|
17236-KL4-000 |
— | ||
|
10
|
10
17240-KT4-770
Duct
|
17240-KT4-770 |
— | ||
|
11
|
11
17242-KL4-000
Filter,gass.
|
17242-KL4-000 |
— | ||
|
12
|
12
17255-KK0-000 Band a |
17255-KK0-000 |
from US $3.26 |
||
| replacement | |||||
|
12
|
12
9501850250 Band, air cleaner connecting tube (50) |
9501850250 |
from US $3.26 |
||
|
12
|
12
9501850250 Band, air cleaner connecting tube (50) |
9501850250 |
from US $3.26 |
||
|
13
|
13
17316-611-000 Clip, breather tube |
17316-611-000 |
from US $0.85 |
||
|
14
|
14
17359-MA2-000
Tube,drain
|
17359-MA2-000 |
— | ||
|
15
|
15
17359-419-670 Joint, breather tube |
17359-419-670 |
from US $1.79 |
||
|
16
|
16
17359-428-000 Joint, breather tube |
17359-428-000 |
from US $3.85 |
||
|
17
|
17
17361-KL4-000
Stay,breather
|
17361-KL4-000 |
— | ||
|
18
|
18
17361-419-670 Body |
17361-419-670 |
from US $19.50 |
||
|
19
|
19
17362-174-670 Cap,breather sep. |
17362-174-670 |
US $12.03 |
||
|
20
|
20
17363-KL4-000
Tube,drain
|
17363-KL4-000 |
— | ||
|
21
|
21
17363-419-670 Holder, element |
17363-419-670 |
from US $4.29 |
||
|
22
|
22
17364-419-000 Element |
17364-419-000 |
US $4.17 |
||
|
23
|
23
17365-KL4-000
Tube b,breather
|
17365-KL4-000 |
— | ||
|
24
|
24
17366-KG0-000 Tube a, drain |
17366-KG0-000 |
US $5.62 |
||
|
25
|
25
95005-800-0120M Bulk hose (8x1000) |
95005-800-0120M |
from US $12.73 |
||
|
26
|
26
17367-KL4-770
Tube,a
|
17367-KL4-770 |
— | ||
|
27
|
27
17368-KL4-000
Tube
|
17368-KL4-000 |
— | ||
|
28
|
28
17370-382-870 Plug, breather tube |
17370-382-870 |
from US $3.54 |
||
|
29
|
29
17724-102-700 ClipSUB TANK HOSE |
17724-102-700 |
from US $2.15 |
||
|
31
|
31
87508-120-000 Label |
87508-120-000 |
from US $4.56 |
||
|
32
|
32
90502-MC4-000
Collar b,air/c
|
90502-MC4-000 |
— | ||
|
33
|
33
90506-MC4-000
Grom.b,air/c case
|
90506-MC4-000 |
— | ||
|
34
|
34
33713-GC2-000 Collar b, taillight |
33713-GC2-000 |
from US $2.21 |
||
|
35
|
35
91305-419-670 O-ring (47x1.9) |
91305-419-670 |
US $2.67 |
||
|
36
|
36
91463-MC4-000 Joint, tube |
91463-MC4-000 |
from US $3.63 |
||
|
37
|
37
91509-679-003
Clip
|
91509-679-003 |
— | ||
|
38
|
38
93500-050320G Screw, pan (5x32) |
93500-050320G |
from US $0.44 |
||
|
39
|
39
93891-0401600 Screw-washer, 4x16 |
93891-0401600 |
from US $0.44 |
||
|
40
|
40
93891-060-180-0 Screw-wash 6x18 |
93891-060-180-0 |
US $0.52 |
||
|
41
|
41
94201-25300 Pin, split, 2.5x30 |
94201-25300 |
from US $0.41 |
||
|
42
|
42
9500201160 Clip, tube (a16) |
9500201160 |
from US $1.41 |
||
|
43
|
43
9500202130 Clip, tube (b12.5) |
9500202130 |
from US $0.52 |
||
|
44
|
44
95002-70000 ClipTUBE (C11) |
95002-70000 |
from US $0.47 |
||
|
45
|
45
9500280000 Clip, tube (c12) |
9500280000 |
from US $0.37 |
||
|
46
|
46
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.58 |
||
|
47
|
47
96001-060-100-0 BoltFLANGE, 6X10 |
96001-060-100-0 |
from US $0.59 |
||
