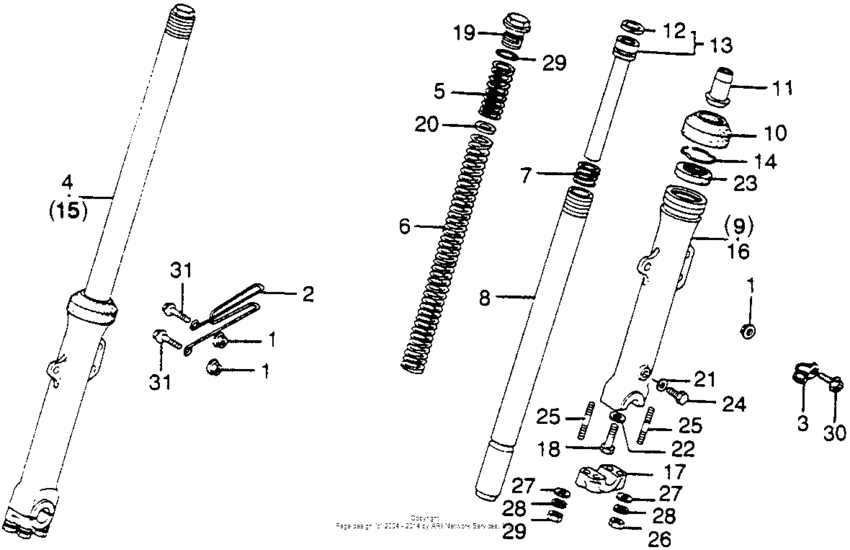

Front fork Diagram Honda XL350
- Year
- 1977
- Model code
- XL350 A
- Sales region
- USA
- Frame
- XL3503100001 - XL3503103105
- Engine Capacity
- 350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
2
|
2
44832-329-000
Clamp,speedometer
|
44832-329-000 |
— | ||
|
3
|
3
45465-329-010
Clip,brakecable
|
45465-329-010 |
— | ||
|
4
|
4
51400-385-003
Fork assy,r.front
|
51400-385-003 |
— | ||
|
5
|
5
51401-356-000
Spring a,fr.cush
|
51401-356-000 |
— | ||
|
6
|
6
51402-385-000
Spring b,fr.fork
|
51402-385-000 |
— | ||
|
7
|
7
51412-340-000 Spring, fr |
51412-340-000 |
from US $4.14 |
||
|
8
|
8
51420-356-000
Pipe.,front fork
|
51420-356-000 |
— | ||
|
9
|
9
51421-358-771
Case,r.front fork
|
51421-358-771 |
— | ||
|
10
|
10
91254-435-003 Dust seal,fr.fork |
91254-435-003 |
from US $13.32 |
||
|
11
|
11
51432-357-000
Piece,oil lock
|
51432-357-000 |
— | ||
|
12
|
12
51437-329-010 Ring,piston |
51437-329-010 |
from US $8.44 |
||
|
13
|
13
51440-385-003
Pipe comp,bottom
|
51440-385-003 |
— | ||
|
14
|
14
51447-KL4-951 Ring |
51447-KL4-951 |
from US $2.66 |
||
|
15
|
15
51500-385-003
Fork Assy., L. Fr.
|
51500-385-003 |
— | ||
|
16
|
16
51521-358-771
Case,l.front fork
|
51521-358-771 |
— | ||
|
17
|
17
51634-340-000
Holder,front axle
|
51634-340-000 |
— | ||
|
18
|
18
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $3.85 |
||
|
19
|
19
90123-300-000 Bolt,front fork |
90123-300-000 |
from US $39.30 |
||
|
20
|
20
90504-356-000
Washer,16mm
|
90504-356-000 |
— | ||
|
21
|
21
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.15 |
||
|
22
|
22
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
23
|
23
91255-KBH-003 Seal,oil,35x48x11 |
91255-KBH-003 |
from US $11.99 |
||
|
24
|
24
92101-06010-0A Bolt, hex., 6x10 |
92101-06010-0A |
from US $0.44 |
||
|
25
|
25
92900-08028-3B Bolt, stud (8x50) |
92900-08028-3B |
from US $0.74 |
||
|
26
|
26
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
27
|
27
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
28
|
28
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
29
|
29
9460850000 O-ring, 23x2.8 |
9460850000 |
from US $0.89 |
||
|
30
|
30
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
||
|
31
|
31
95701-060-200-0 Bolt |
95701-060-200-0 |
from US $0.52 |
