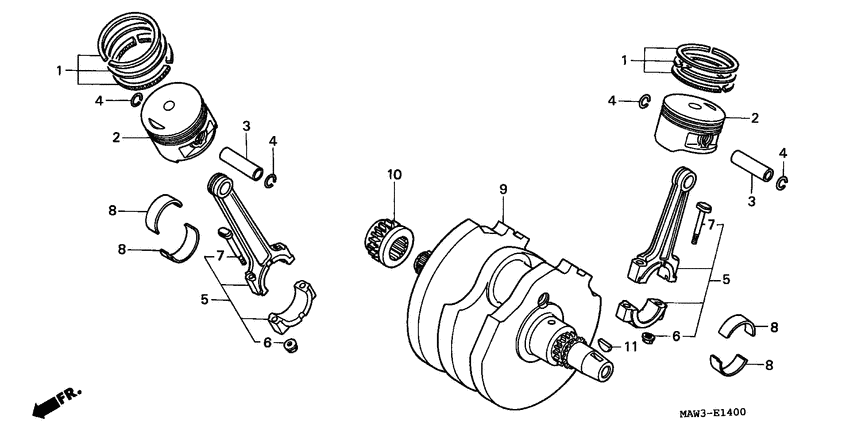

Crankshaft/piston Diagram Honda XL600 Transalp
- Year
- 1996
- Model code
- XL600VT
- Sales region
- Italy
- Frame
- JH2PD06A*TM000001 - JH2PD06A*TM005447
- Engine Capacity
- 600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13011-MS6-305 Ring set (std) (600cc) |
13011-MS6-305 |
from US $78.88 |
||
|
1
|
1
13012-MS6-305 Ring set (os 0.25) (600cc) |
13012-MS6-305 |
US $81.07 |
||
|
1
|
1
13013-MS6-305
Ring set (os 0.50) (600cc)
|
13013-MS6-305 |
— | ||
|
2
|
2
13101-MM9-000 Piston (std) (NV600/VT600/XL600) |
13101-MM9-000 |
US $134.64 |
||
|
2
|
2
13102-MM9-305 Piston (os 0.25) (NV600/VT600/XL600) |
13102-MM9-305 |
US $129.57 |
||
|
2
|
2
13103-MM9-305
Piston (os 0.50) (NV600/VT600/XL600)
|
13103-MM9-305 |
— | ||
|
3
|
3
13111-MB0-000
Pin, piston
|
13111-MB0-000 |
— | ||
| replacement | |||||
|
3
|
3
13111-MT3-000 Pin, piston |
13111-MT3-000 |
from US $11.25 |
||
|
4
|
4
13112-MF5-000 Clip (18mm) |
13112-MF5-000 |
from US $2 |
||
|
5
|
5
13201-MR1-000
Rod a, connecting
|
13201-MR1-000 |
— | ||
| replacement | |||||
|
5
|
5
13210-MBL-G00 ROD B, CONNECTING |
13210-MBL-G00 |
US $294.19 |
||
|
5
|
5
13202-MR1-000 Rod b, connecting |
13202-MR1-000 |
US $207.37 |
||
| replacement | |||||
|
5
|
5
13210-MBL-G00 ROD B, CONNECTING |
13210-MBL-G00 |
US $294.19 |
||
|
5
|
5
13203-MR1-000 Rod c, connecting |
13203-MR1-000 |
from US $188.68 |
||
|
6
|
6
13215-ML7-000 Nut, connecting rod |
13215-ML7-000 |
from US $4.44 |
||
|
7
|
7
13213-463-003 BoltCONNECTING ROD (NAGOYA RASHI) |
13213-463-003 |
from US $7 |
||
|
8
|
8
13216-MF5-003 Bearing a, conn rod (BLUE) |
13216-MF5-003 |
from US $15.78 |
||
|
8
|
8
13217-MF5-003 Bearing b, conn rod (BLACK) |
13217-MF5-003 |
from US $17.14 |
||
|
8
|
8
13218-MF5-003 Bearing c, conn rod (BROWN) |
13218-MF5-003 |
from US $13.76 |
||
|
9
|
9
13300-MS6-620 Crankshaft comp. |
13300-MS6-620 |
US $930.24 |
||
|
10
|
10
14311-MR1-000 Sprocket (20t) |
14311-MR1-000 |
from US $67.12 |
||
|
11
|
11
90741-413-000 Key, woodruff |
90741-413-000 |
from US $2.69 |
||
