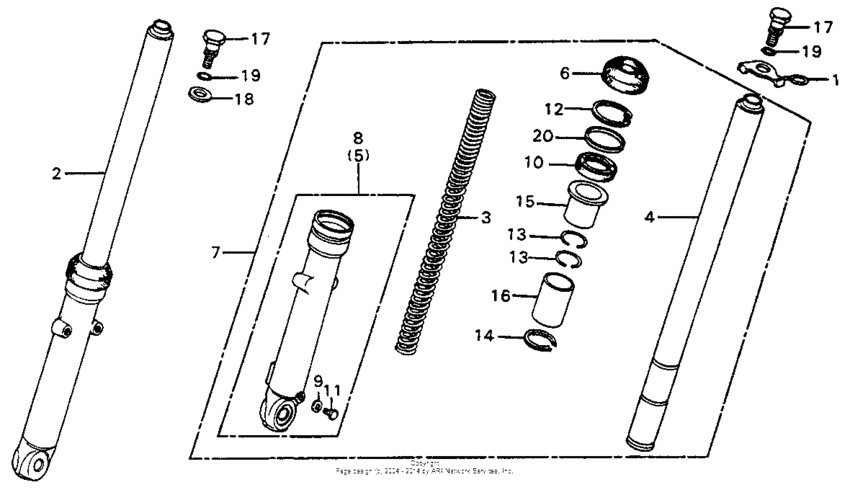

Front fork Diagram Honda XL75
- Year
- 1979
- Model code
- XL75 A
- Sales region
- USA
- Frame
- XL755000001 - XL755011386
- Engine Capacity
- 75
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45467-150-000
Clip,brake cable
|
45467-150-000 |
— | ||
|
2
|
2
51400-152-710ZA
Fork, r. fr. *nh35m*
|
51400-152-710ZA |
— | ||
|
3
|
3
51401-152-003
Spring,fr cushion
|
51401-152-003 |
— | ||
|
4
|
4
51410-152-003
Pipe.comp,fr fork
|
51410-152-003 |
— | ||
|
5
|
5
51420-152-710ZA
Case, r. fr. *nh35m*
|
51420-152-710ZA |
— | ||
|
6
|
6
51425-118-023 Dust seal,fr.fork |
51425-118-023 |
from US $13.48 |
||
|
7
|
7
51500-152-710ZA
Fork, l. fr. *nh35m*
|
51500-152-710ZA |
— | ||
|
8
|
8
51520-152-710ZA
Case, l. fr. *nh35m*
|
51520-152-710ZA |
— | ||
|
9
|
9
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.37 |
||
|
10
|
10
90756-149-841 Oil seal |
90756-149-841 |
from US $11.40 |
||
|
11
|
11
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
12
|
12
94521-40000 Cir,clip.40mm |
94521-40000 |
US $1.04 |
||
|
13
|
13
94570-27000
Snapring a,27mm
|
94570-27000 |
— | ||
|
14
|
14
94580-27000 Snapring b,27mm |
94580-27000 |
US $1.33 |
||
|
15
|
15
94602-27101 Guide,pipe,27mm |
94602-27101 |
US $7.10 |
||
|
16
|
16
94603-27002
Piston,fork,27mm
|
94603-27002 |
— | ||
|
17
|
17
94605-10101 Bolt a,fork |
94605-10101 |
from US $3.33 |
||
|
18
|
18
94606-13001 Washer,fork bolt |
94606-13001 |
from US $0.52 |
||
|
19
|
19
9460810000 O-ring (8.4x2.4) |
9460810000 |
from US $2.09 |
||
| replacement | |||||
|
19
|
19
91316-MJ8-003 O-ring (8.4x2.4) |
91316-MJ8-003 |
from US $2.52 |
||
|
20
|
20
94609-30000 Ring,back up.30mm |
94609-30000 |
US $0.89 |
||
