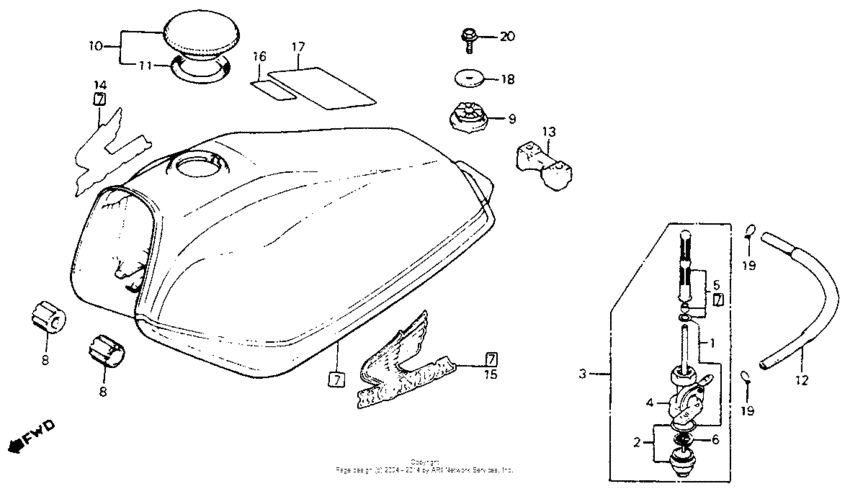

Fuel tank 82 Diagram Honda XL80
- Year
- 1982
- Model code
- XL80S A
- Sales region
- USA
- Frame
- JH2HD040*CK200004 - JH2HD040*CK206263
- Engine Capacity
- 80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16080-195-701 O-ring |
16080-195-701 |
US $6.02 |
||
|
2
|
2
16967-GA6-671 Cup, fuel strainer |
16967-GA6-671 |
from US $11.61 |
||
|
3
|
3
16950-195-702 Cock assy.,fuel |
16950-195-702 |
from US $65.14 |
||
|
4
|
4
16951-195-701
Body comp.,cock
|
16951-195-701 |
— | ||
|
5
|
5
16952-GB2-721
Screen,fuel strai
|
16952-GB2-721 |
— | ||
|
6
|
6
16959-471-831 Filter, cup |
16959-471-831 |
from US $11.41 |
||
|
7
|
7
175A1-195-700ZA
Tank, fuel *r110*
|
175A1-195-700ZA |
— | ||
|
8
|
8
17611-HA5-000 Rubber, fr |
17611-HA5-000 |
from US $4.74 |
||
|
9
|
9
17613-176-000 Rubber, rr |
17613-176-000 |
from US $3.92 |
||
|
10
|
10
17620-195-771 Cap,fuel |
17620-195-771 |
US $39.30 |
||
|
11
|
11
17632-176-771 Gasket |
17632-176-771 |
US $9.16 |
||
| replacement | |||||
|
11
|
11
17632-176-772 Gasket |
17632-176-772 |
from US $6.02 |
||
|
12
|
12
17681-195-670
Tube, fuel
|
17681-195-670 |
— | ||
|
13
|
13
77205-176-000
Rubber, seat cushion
|
77205-176-000 |
— | ||
|
14
|
14
87122-382-670 Emblem a,r.tank |
87122-382-670 |
US $19.30 |
||
|
15
|
15
87123-382-670 Emblem a,l.tank |
87123-382-670 |
US $19.30 |
||
|
16
|
16
87510-147-670ZB
Label *nh0*
|
87510-147-670ZB |
— | ||
|
17
|
17
87560-181-760ZB
Label *nh1* (typew)
|
87560-181-760ZB |
— | ||
|
18
|
18
90136-428-870 Washer, tank setting |
90136-428-870 |
from US $2.37 |
||
|
19
|
19
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
||
|
20
|
20
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
