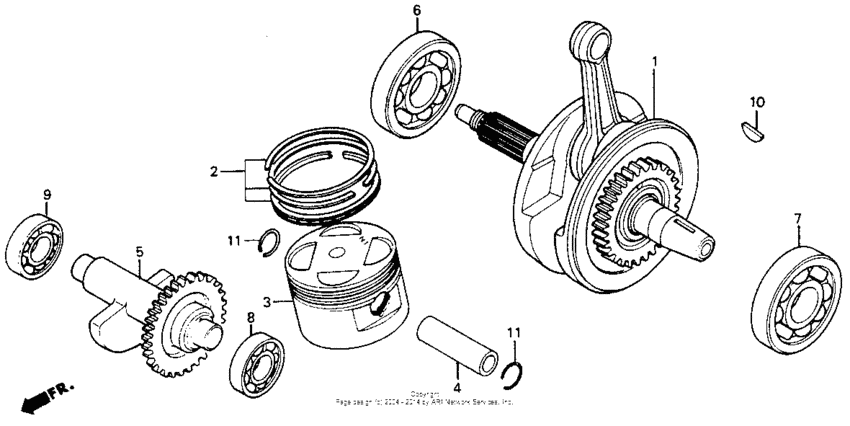

Crankshaft 84-85 Diagram Honda XR200
- Year
- 1984
- Model code
- XR200R A
- Sales region
- USA
- Frame
- JH2ME050*EK000006 - JH2ME050*EK005349
- Engine Capacity
- 200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13000-KK0-000
Crankshaft
|
13000-KK0-000 |
— | ||
|
2
|
2
13011-KK0-305
Ring set (std)
|
13011-KK0-305 |
— | ||
|
2
|
2
13012-KK0-305
Ring set (os 0.25)
(Optional). |
13012-KK0-305 |
— | ||
|
2
|
2
13013-KK0-305
Ring set (os 0.50)
(Optional). |
13013-KK0-305 |
— | ||
|
2
|
2
13014-KK0-305
Ring set (0.75)
(Optional). |
13014-KK0-305 |
— | ||
|
2
|
2
13015-KK0-305
Ring set (1.00)
(Optional). |
13015-KK0-305 |
— | ||
|
3
|
3
13101-KK0-003
Piston (std)
|
13101-KK0-003 |
— | ||
|
3
|
3
13102-KK0-305 Piston (os 0.25)(Optional). |
13102-KK0-305 |
US $99.64 |
||
|
3
|
3
13103-KK0-305
Piston (os 0.50)
(Optional). |
13103-KK0-305 |
— | ||
|
3
|
3
13104-KK0-305
Piston (0.75)
(Optional). |
13104-KK0-305 |
— | ||
|
3
|
3
13105-KK0-305
Piston (1.00)
(Optional). |
13105-KK0-305 |
— | ||
|
4
|
4
13111-KK0-000 Pin, piston |
13111-KK0-000 |
from US $19.42 |
||
|
5
|
5
13420-KK1-000
Shaft (34t)
|
13420-KK1-000 |
— | ||
|
6
|
6
91009-HC0-003 Bearing (63/28) |
91009-HC0-003 |
from US $33.32 |
||
|
7
|
7
91002-KK0-003
Bearing (63/28)
|
91002-KK0-003 |
— | ||
|
8
|
8
91006-KF0-003
Bearing (6301)
|
91006-KF0-003 |
— | ||
|
9
|
9
91009-KJ1-003 Bearing, radial ball, 6202 (ntn) |
91009-KJ1-003 |
from US $8.73 |
||
|
10
|
10
94401-25140 KeyWOODRUFF, 25X14 |
94401-25140 |
from US $0.86 |
||
|
11
|
11
94601-17000 ClipPISTON PIN, 17MM |
94601-17000 |
from US $0.44 |
