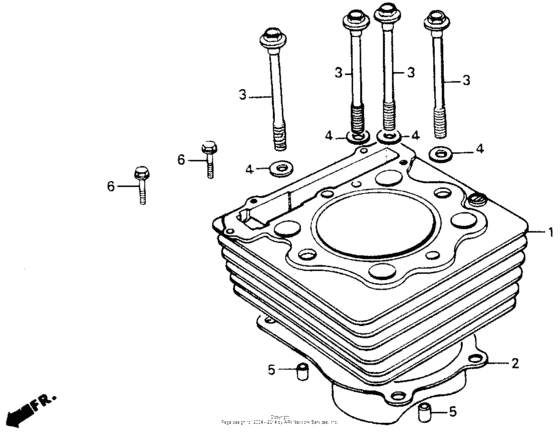

Cylinder 84-85 Diagram Honda XR200
- Year
- 1984
- Model code
- XR200R A
- Sales region
- USA
- Frame
- JH2ME050*EK000006 - JH2ME050*EK005349
- Engine Capacity
- 200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-KK0-000
Cylinder
|
12100-KK0-000 |
— | ||
|
2
|
2
12191-KZ1-920 Gasket, cylinder |
12191-KZ1-920 |
from US $3.40 |
||
|
3
|
3
90083-KK0-000 Bolt, flange (10x88) |
90083-KK0-000 |
from US $11.40 |
||
|
4
|
4
90410-KR0-000 Washer (10mm) |
90410-KR0-000 |
from US $3.26 |
||
|
5
|
5
94301-12200 Dowel pin12X20 |
94301-12200 |
from US $1.04 |
||
|
6
|
6
96001-0602007 Bolt, flange (6x20) |
96001-0602007 |
from US $0.59 |
