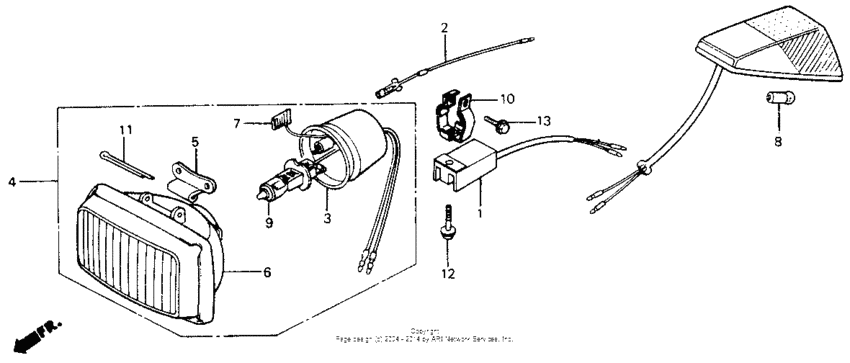

Headlight unit 84-85 Diagram Honda XR200
- Year
- 1984
- Model code
- XR200R A
- Sales region
- USA
- Frame
- JH2ME050*EK000006 - JH2ME050*EK005349
- Engine Capacity
- 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31400-KA2-641
Regulator
|
31400-KA2-641 |
— | ||
|
2
|
2
32101-KF0-810
Sub-cable
|
32101-KF0-810 |
— | ||
|
3
|
3
33115-MG3-003 Cover, rubber |
33115-MG3-003 |
US $15.64 |
||
|
4
|
4
33120-MK2-671 Headlight unit |
33120-MK2-671 |
US $127.09 |
||
|
5
|
5
33122-KF0-671
Stay, headlight
|
33122-KF0-671 |
— | ||
|
6
|
6
33123-MK2-671 Headlight |
33123-MK2-671 |
US $68.19 |
||
|
7
|
7
33140-MG3-003 Wire |
33140-MG3-003 |
US $20.51 |
||
|
8
|
8
34902-259-000 BulbDASH (12V 3.4W) (STANLEY) |
34902-259-000 |
from US $2.29 |
||
| replacement | |||||
|
8
|
8
34902-259-003 Bulb (12v 3.4w) |
34902-259-003 |
from US $2.11 |
||
|
9
|
9
34908-SA0-811 Bulb (12v55w) (h3) |
34908-SA0-811 |
from US $14 |
||
|
10
|
10
50256-KK1-620ZA
Stay *r119*
|
50256-KK1-620ZA |
— | ||
|
11
|
11
94201-30350 PinSPLIT, 3.0X35 |
94201-30350 |
from US $0.44 |
||
|
12
|
12
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.59 |
||
|
13
|
13
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.41 |
||
