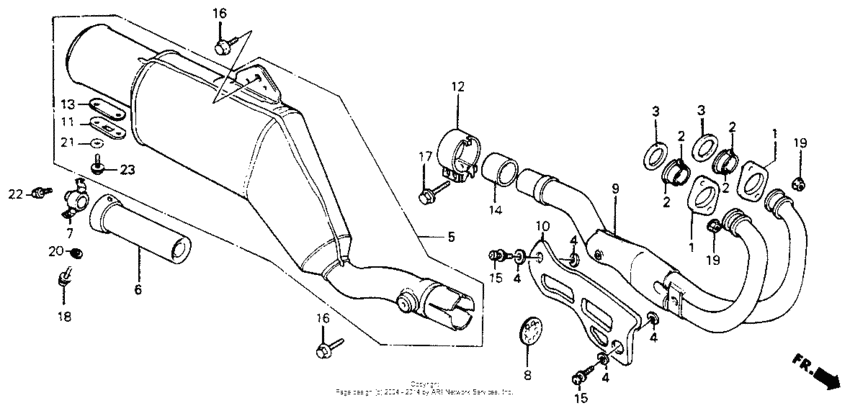

Muffler 84-85 Diagram Honda XR200
- Year
- 1984
- Model code
- XR200R A
- Sales region
- USA
- Frame
- JH2ME050*EK000006 - JH2ME050*EK005349
- Engine Capacity
- 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18231-KK0-000
Joint, ex. pipe
|
18231-KK0-000 |
— | ||
|
2
|
2
18233-437-000 Colr, ex. pipe joint |
18233-437-000 |
from US $7.99 |
||
|
3
|
3
18291-KZ1-670 Gasket, ex. pipe |
18291-KZ1-670 |
from US $5.92 |
||
|
4
|
4
18292-MM9-740 Gasket, protector |
18292-MM9-740 |
from US $4.20 |
||
|
5
|
5
18310-KK0-000
Muffler
|
18310-KK0-000 |
— | ||
|
6
|
6
18311-MA0-010 Pipe, tail |
18311-MA0-010 |
from US $34 |
||
|
8
|
8
18318-KK0-000
Plate, muffler
|
18318-KK0-000 |
— | ||
|
9
|
9
18320-KK0-770
Pipe, ex.
|
18320-KK0-770 |
— | ||
|
10
|
10
18325-KK0-000
Protector, ex. pipe
|
18325-KK0-000 |
— | ||
|
11
|
11
18373-429-010 Lid, muffler |
18373-429-010 |
from US $5 |
||
|
12
|
12
18374-MG5-670
Band, r. muffler
|
18374-MG5-670 |
— | ||
|
13
|
13
18374-MN1-880 Gasket, muffler lid |
18374-MN1-880 |
from US $4.44 |
||
|
14
|
14
18391-438-306 Gasket, muffler |
18391-438-306 |
from US $10.95 |
||
|
15
|
15
90136-MC7-000 Screw-washer (6x12) |
90136-MC7-000 |
from US $4 |
||
|
16
|
16
96300-0801600 Bolt, flange (8x16) |
96300-0801600 |
from US $0.74 |
||
|
17
|
17
90216-KF0-000
Bolt, flange (8x32)
|
90216-KF0-000 |
— | ||
|
18
|
18
93500-060-080-H ScrewPAN, 6X8 |
93500-060-080-H |
from US $0.44 |
||
|
18
|
18
93500-060080A Screw, pan, 6x8 |
93500-060080A |
from US $0.44 |
||
|
19
|
19
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
20
|
20
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
21
|
21
94101-06700 WasherPLAIN, 6MM |
94101-06700 |
from US $0.37 |
||
|
23
|
23
96001-060-120-7 BoltFLANGE, 6X12 |
96001-060-120-7 |
from US $0.59 |
