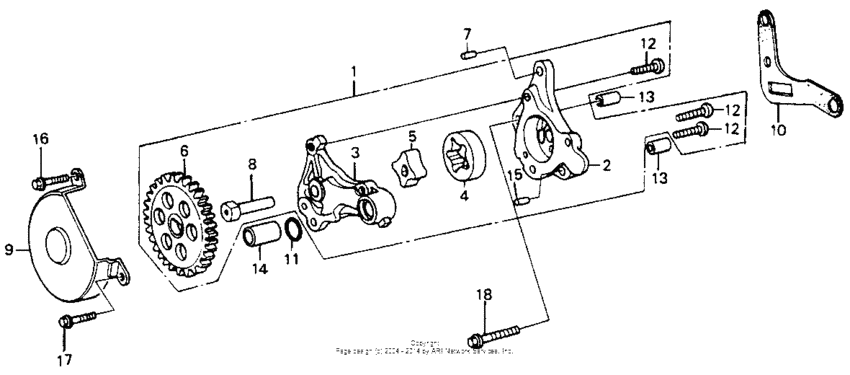

Oil pump 84 Diagram Honda XR200
- Year
- 1984
- Model code
- XR200R A
- Sales region
- USA
- Frame
- JH2ME050*EK000006 - JH2ME050*EK005349
- Engine Capacity
- 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-KK0-000
Pump assy., oil
|
15100-KK0-000 |
— | ||
|
2
|
2
15111-KK0-000
Body, oil pump
|
15111-KK0-000 |
— | ||
|
3
|
3
15121-KK0-000 Cover, oil pump |
15121-KK0-000 |
US $52.80 |
||
|
4
|
4
15122-KK0-000 Rotor, oil pump |
15122-KK0-000 |
US $17.27 |
||
|
5
|
5
15123-KK0-000 Rotor, oil pump |
15123-KK0-000 |
from US $14.50 |
||
|
6
|
6
15140-KK0-000
Gear (31t)
|
15140-KK0-000 |
— | ||
|
7
|
7
15141-KF0-000 Roller (6x8) |
15141-KF0-000 |
from US $2.16 |
||
|
8
|
8
15141-KK0-000
Shaft, oil pump
|
15141-KK0-000 |
— | ||
|
9
|
9
15151-KK0-000
Cover, oil pump gear
|
15151-KK0-000 |
— | ||
|
10
|
10
15152-KK0-405
Seat, oil pump
|
15152-KK0-405 |
— | ||
|
11
|
11
91303-KK0-003 Gasket, rubber |
91303-KK0-003 |
from US $2.66 |
||
|
12
|
12
93500-050180A Screw, pan, 5x18 |
93500-050180A |
from US $0.38 |
||
|
13
|
13
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
14
|
14
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
|
15
|
15
94303-04065 Pin cDOWEL, 4X6.5 |
94303-04065 |
from US $0.81 |
||
|
16
|
16
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.59 |
||
|
17
|
17
96000-0602500 Bolt, flange, 6x25 |
96000-0602500 |
US $24.50 |
||
| replacement | |||||
|
17
|
17
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
17
|
17
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
||
|
18
|
18
96001-060-350-0 Bolt, flange, 6x35 |
96001-060-350-0 |
from US $0.74 |
||
