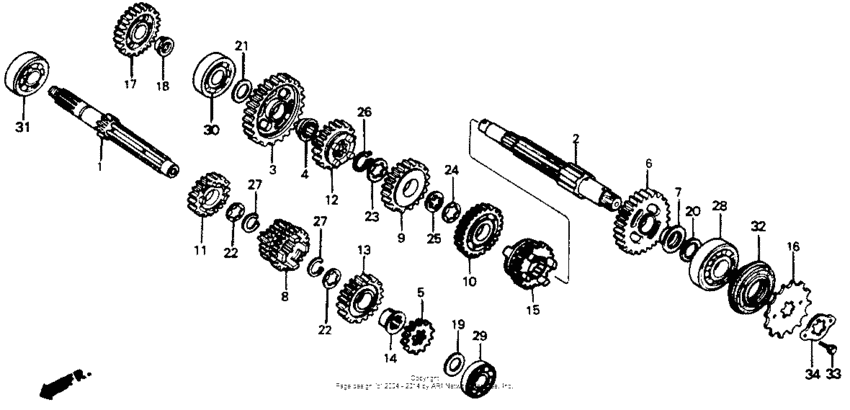

Transmission 84-85 Diagram Honda XR200
- Year
- 1984
- Model code
- XR200R A
- Sales region
- USA
- Frame
- JH2ME050*EK000006 - JH2ME050*EK005349
- Engine Capacity
- 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23210-KK0-000
Mainshaft (13t)
|
23210-KK0-000 |
— | ||
|
2
|
2
23220-KK1-000
Countershaft, trans
|
23220-KK1-000 |
— | ||
|
3
|
3
23411-KK1-000
Gear (36t)
|
23411-KK1-000 |
— | ||
|
4
|
4
23412-KK0-000
Bush (18mm)
|
23412-KK0-000 |
— | ||
|
5
|
5
23421-KK1-000
Gear (17t)
|
23421-KK1-000 |
— | ||
|
6
|
6
23431-KK1-000 Gear (33t) |
23431-KK1-000 |
US $309.37 |
||
|
7
|
7
23432-KK0-000 Collar (22mm) |
23432-KK0-000 |
US $29.04 |
||
|
8
|
8
23441-KK1-000 Gear (23t & 20t) |
23441-KK1-000 |
US $201.92 |
||
|
9
|
9
23451-KK1-000
Gear (29t)
|
23451-KK1-000 |
— | ||
|
10
|
10
23471-KK0-010 Gear (26t) |
23471-KK0-010 |
US $80.27 |
||
|
11
|
11
23481-KK0-000
Gear (26t)
|
23481-KK0-000 |
— | ||
|
12
|
12
23491-KK0-000
Gear (24t)
|
23491-KK0-000 |
— | ||
|
13
|
13
23501-KK1-000 Gear (28t) |
23501-KK1-000 |
US $125.31 |
||
|
14
|
14
23505-KL4-000 Colr, spline (23mm) |
23505-KL4-000 |
US $23.29 |
||
|
15
|
15
23511-KK1-000
Gear (22t)
|
23511-KK1-000 |
— | ||
|
16
|
16
23801-446-770 Sprocket (13t) |
23801-446-770 |
US $44.86 |
||
|
17
|
17
28200-KL4-308
Gear (27t)
|
28200-KL4-308 |
— | ||
|
18
|
18
28222-KK0-000 Bush (15mm) |
28222-KK0-000 |
from US $19.04 |
||
|
19
|
19
90451-107-000 Washer, thrust, 15mm |
90451-107-000 |
from US $2.15 |
||
|
20
|
20
90452-357-000 Washer (22mm) |
90452-357-000 |
from US $7.25 |
||
|
21
|
21
90454-KF0-000 Washer, thrust, 17mm |
90454-KF0-000 |
from US $2.66 |
||
|
22
|
22
90455-107-000 Washer a (20mm) |
90455-107-000 |
from US $2.59 |
||
|
23
|
23
90463-329-000
Washer (22mm)
|
90463-329-000 |
— | ||
|
24
|
24
90464-360-000 Washer |
90464-360-000 |
from US $4 |
||
|
25
|
25
90465-KK0-000
Washer, lock
|
90465-KK0-000 |
— | ||
|
26
|
26
90601-437-000 Circlip (22mm) |
90601-437-000 |
from US $2.96 |
||
|
27
|
27
90605-200-000 Set-ring (20mm) |
90605-200-000 |
from US $3.11 |
||
|
28
|
28
91004-KW3-004 Bearing (62/22) |
91004-KW3-004 |
from US $14.50 |
||
|
29
|
29
91005-KK0-003 Bearing, ball (6202) |
91005-KK0-003 |
from US $14.14 |
||
|
30
|
30
91005-MG3-003
Bearing (17x42x12)
Use up to Engine SN 5007472 |
91005-MG3-003 |
— | ||
|
30
|
30
91007-KK0-000 Bearing (17x42x12)Use from Engine SN 5007473 |
91007-KK0-000 |
from US $12.58 |
||
|
31
|
31
91006-KK0-003
Bearing, ball (6204)
|
91006-KK0-003 |
— | ||
|
32
|
32
91201-KK0-005
Oil seal (20x36x7)
|
91201-KK0-005 |
— | ||
|
33
|
33
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
34
|
34
9501492100 Plate b, fixing |
9501492100 |
from US $0.81 |
