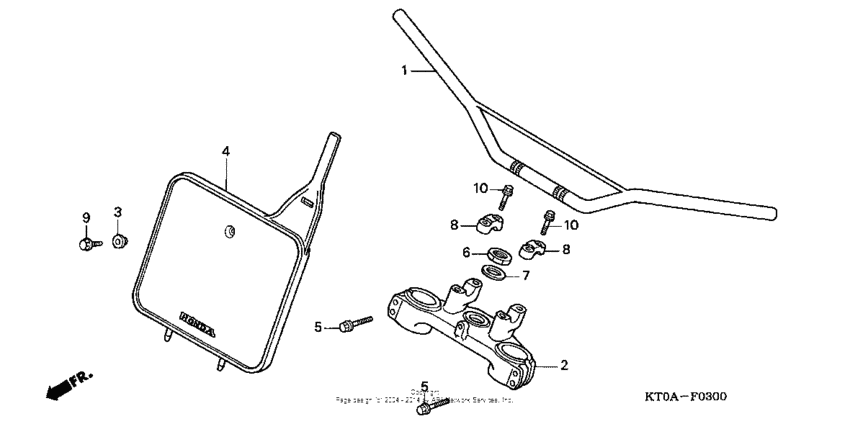

Handlebar Diagram Honda XR200
- Year
- 2002
- Model code
- XR200R AC
- Sales region
- USA
- Frame
- JH2ME051*2K400001 -
- Engine Capacity
- 200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53100-KT0-A30ZA
Handlebar *nh146m*
|
53100-KT0-A30ZA |
— | ||
|
2
|
2
53230-KK0-010 Bridge, fork top |
53230-KK0-010 |
US $130.24 |
||
|
3
|
3
61101-441-000 Collar, fr |
61101-441-000 |
from US $3.83 |
||
|
4
|
4
61140-KT0-A50ZA
Plate set *nh196*
|
61140-KT0-A50ZA |
— | ||
|
5
|
5
90103-KF0-000 Bolt, flange (8x45) |
90103-KF0-000 |
from US $3.55 |
||
|
6
|
6
90304-425-000 Nut, steering stem |
90304-425-000 |
from US $9.92 |
||
|
7
|
7
90503-425-000 Washer |
90503-425-000 |
from US $2.89 |
||
|
8
|
8
9501422200 Holder b2, handlebar |
9501422200 |
from US $7.70 |
||
|
9
|
9
96001-060-140-0 BoltFLANGE, 6X14 |
96001-060-140-0 |
from US $0.59 |
||
|
10
|
10
96300-0803500 Bolt, flange (8x35) |
96300-0803500 |
from US $0.81 |
