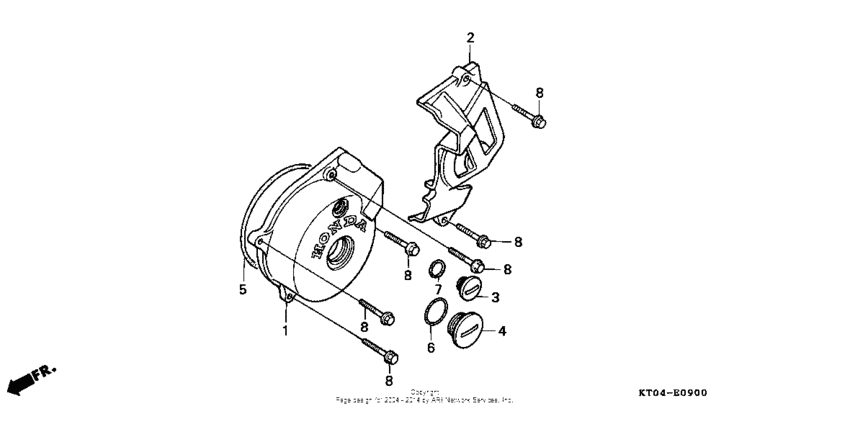

Left Crankcase Cover Diagram Honda XR200
- Year
- 2002
- Model code
- XR200R AC
- Sales region
- USA
- Frame
- JH2ME051*2K400001 -
- Engine Capacity
- 200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-KT0-830 Cover, l. crankcase |
11341-KT0-830 |
US $100.68 |
||
|
2
|
2
11360-KT0-830
Cover, l. rr.
|
11360-KT0-830 |
— | ||
|
3
|
3
90084-471-000 Cap, alternator |
90084-471-000 |
US $6.81 |
||
|
4
|
4
90087-428-000 Cap (30mm) |
90087-428-000 |
from US $12.88 |
||
|
5
|
5
91302-KG2-951 O-ring (127.5x2.8) |
91302-KG2-951 |
from US $4.77 |
||
|
6
|
6
91302-567-003 O-ring (27.4x2.4) |
91302-567-003 |
from US $2.66 |
||
|
7
|
7
91303-377-000 O-ring, 13.8x2.5 |
91303-377-000 |
from US $5.49 |
||
|
8
|
8
96001-060-250-0 BoltFLANGE, 6X25 |
96001-060-250-0 |
from US $0.74 |
