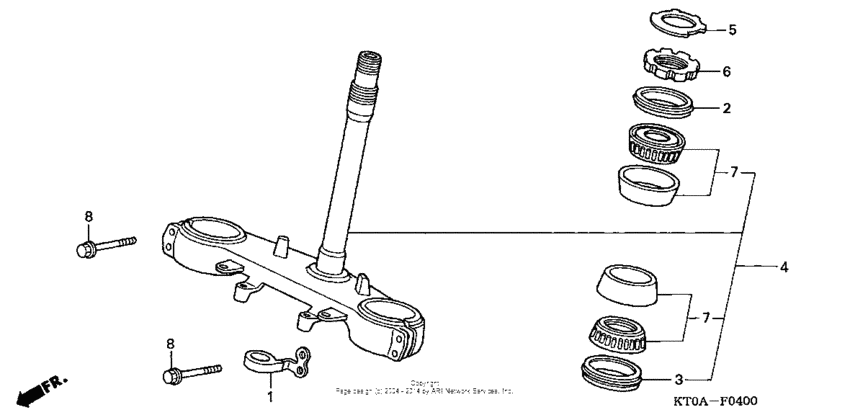

Steering stem Diagram Honda XR200
- Year
- 2002
- Model code
- XR200R AC
- Sales region
- USA
- Frame
- JH2ME051*2K400001 -
- Engine Capacity
- 200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45460-KT0-830 Guide, brake cable |
45460-KT0-830 |
US $12.97 |
||
|
2
|
2
53214-KA3-732 Dust seal |
53214-KA3-732 |
from US $5.33 |
||
|
3
|
3
53214-KA4-701 Dust seal |
53214-KA4-701 |
from US $3.40 |
||
|
4
|
4
53219-KT0-A00
Stem sub-assy., strg
|
53219-KT0-A00 |
— | ||
|
5
|
5
53228-KN5-000 Washer, top thread |
53228-KN5-000 |
from US $4.59 |
||
|
6
|
6
53229-KN5-650 Thread |
53229-KN5-650 |
from US $19.86 |
||
|
7
|
7
91015-425-832 Bearing, head pipe |
91015-425-832 |
from US $21.62 |
||
|
8
|
8
96300-0803500 Bolt, flange (8x35) |
96300-0803500 |
from US $0.81 |
