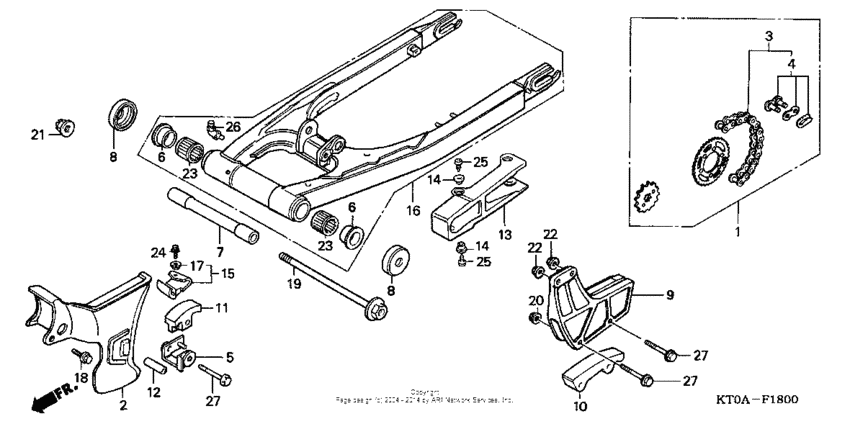

Swingarm Diagram Honda XR200
- Year
- 2002
- Model code
- XR200R AC
- Sales region
- USA
- Frame
- JH2ME051*2K400001 -
- Engine Capacity
- 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06406-KT0-A20
Chain kit (520-108l)
|
06406-KT0-A20 |
— | ||
|
2
|
2
40510-KK0-000
Case, drive chain
|
40510-KK0-000 |
— | ||
|
3
|
3
40530-KCY-672 Chain, drive |
40530-KCY-672 |
from US $145.04 |
||
|
3
|
3
06405-KV3-P00
Chain set, drive
|
06405-KV3-P00 |
— | ||
|
4
|
4
40531-KCE-672 Master link |
40531-KCE-672 |
from US $6 |
||
|
4
|
4
40531-KT0-003 Master link |
40531-KT0-003 |
US $8.18 |
||
|
5
|
5
50143-MA0-770
Stay, tensioner
|
50143-MA0-770 |
— | ||
|
6
|
6
52109-430-300 Bush, pivot thrust |
52109-430-300 |
from US $13.17 |
||
|
7
|
7
52141-KT1-770
Collar, rr.
|
52141-KT1-770 |
— | ||
|
8
|
8
52144-356-005 Cap, dust seal |
52144-356-005 |
from US $14.21 |
||
|
9
|
9
52146-KT0-770
Guide, chain
|
52146-KT0-770 |
— | ||
|
10
|
10
52147-KF0-000 Slider, chain guide |
52147-KF0-000 |
from US $15.78 |
||
|
11
|
11
52155-KK0-771 Slider, chain |
52155-KK0-771 |
from US $23.49 |
||
|
12
|
12
52159-169-000
Collar, chain roller
|
52159-169-000 |
— | ||
|
13
|
13
52170-KK0-771 Slider, chain |
52170-KK0-771 |
from US $64.19 |
||
|
14
|
14
52171-MC4-000 Collar, chain slider |
52171-MC4-000 |
from US $4.16 |
||
|
15
|
15
52180-KT0-670
Slider b, chain
|
52180-KT0-670 |
— | ||
|
16
|
16
52200-KT0-A30ZA
Swingarm sub assy. *
|
52200-KT0-A30ZA |
— | ||
|
17
|
17
61304-397-830 Collar |
61304-397-830 |
from US $1.85 |
||
|
18
|
18
90111-KT1-780 Bolt, flange (6mm) |
90111-KT1-780 |
from US $3.80 |
||
|
19
|
19
90121-KL4-000 Bolt, rr |
90121-KL4-000 |
from US $42.43 |
||
|
20
|
20
90301-473-003 Nut, u, 6mm |
90301-473-003 |
from US $4.74 |
||
|
21
|
21
90305-GE8-003 Nut, u (14mm) |
90305-GE8-003 |
from US $4.29 |
||
|
22
|
22
90309-428-731 Nut, flange (self-lock) (m8x1.25) |
90309-428-731 |
from US $4.29 |
||
|
23
|
23
91070-GC4-601 Bearing (20x26x20) |
91070-GC4-601 |
from US $9.77 |
||
|
24
|
24
92101-05012-0G Bolt, hex. (5x12) |
92101-05012-0G |
from US $0.37 |
||
|
25
|
25
9390126180 Screw, tap (6x12) |
9390126180 |
from US $0.44 |
||
|
26
|
26
9620180000 Fitting (b.76s) |
9620180000 |
from US $1.85 |
||
|
27
|
27
96300-0604500 Bolt, flange (6x45) |
96300-0604500 |
from US $0.86 |
