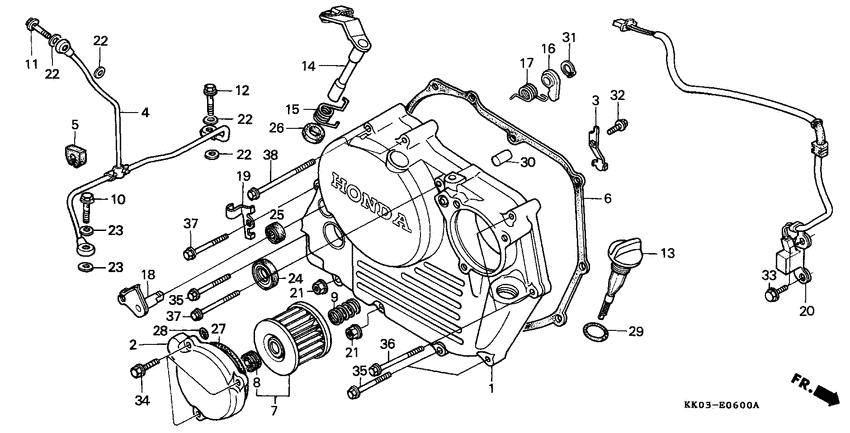

Right crankcase cover (1) Diagram Honda XR200
- Year
- 1985
- Model code
- XR200RF
- Sales region
- South Africa
- Frame
- ME055100006 - ME055104426
- Engine Capacity
- 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11330-KL4-000
Cover, r. crankcase
|
11330-KL4-000 |
— | ||
|
2
|
2
11333-KL4-000 Cover, oil filter |
11333-KL4-000 |
US $60.21 |
||
|
3
|
3
11334-KK0-000
Plate
|
11334-KK0-000 |
— | ||
|
4
|
4
11335-KK0-770
Pipe, oil passage
- 5106356 |
11335-KK0-770 |
— | ||
| replacement | |||||
|
4
|
4
11335-KK0-771
Pipe, oil passage
- 5106356 |
11335-KK0-771 |
— | ||
|
4
|
4
11335-KK0-771
Pipe, oil passage
5106357 - |
11335-KK0-771 |
— | ||
|
5
|
5
11338-KK0-000
Rubber
|
11338-KK0-000 |
— | ||
|
6
|
6
11394-KK0-000 Gasket, r |
11394-KK0-000 |
US $16.71 |
||
| replacement | |||||
|
6
|
6
11394-KZ1-920 Gasket, r |
11394-KZ1-920 |
from US $18.39 |
||
|
7
|
7
15412-KF0-010 Element, oil filter |
15412-KF0-010 |
from US $6.56 |
||
| replacement | |||||
|
7
|
7
15410-KF0-315 Element, oil filter |
15410-KF0-315 |
from US $7.85 |
||
|
8
|
8
15413-MC8-000 Rubber, filter |
15413-MC8-000 |
from US $2.56 |
||
|
9
|
9
15414-KF0-000 Spring |
15414-KF0-000 |
from US $2.29 |
||
|
10
|
10
15532-KK0-770 Bolt, flange (8x28) |
15532-KK0-770 |
from US $4.74 |
||
|
11
|
11
15533-KK0-000 Bolt, flange (7x23) |
15533-KK0-000 |
from US $4.44 |
||
|
12
|
12
15533-KK0-770 Bolt, flange (7x28) |
15533-KK0-770 |
US $11.99 |
||
|
13
|
13
15650-KK0-000
Dipstick, oil
|
15650-KK0-000 |
— | ||
| replacement | |||||
|
13
|
13
15650-KT1-000 Dipstick, oil |
15650-KT1-000 |
US $5.93 |
||
|
14
|
14
22810-KK0-000
Lever, clutch
|
22810-KK0-000 |
— | ||
| replacement | |||||
|
14
|
14
22810-KR6-000
Lever, clutch
|
22810-KR6-000 |
— | ||
|
15
|
15
22815-KK0-000
Spring, clutch lever
|
22815-KK0-000 |
— | ||
|
16
|
16
28271-428-000
Follower, cam
|
28271-428-000 |
— | ||
|
17
|
17
28274-KK0-000
Spring, follower
|
28274-KK0-000 |
— | ||
|
18
|
18
28280-KK0-000
Shaft, follower
|
28280-KK0-000 |
— | ||
|
19
|
19
28287-KK0-000
Receiver b
|
28287-KK0-000 |
— | ||
|
20
|
20
30300-KK0-770
Generator, pulse
|
30300-KK0-770 |
— | ||
| replacement | |||||
|
20
|
20
30300-KS5-164
Generator, pulse
|
30300-KS5-164 |
— | ||
|
21
|
21
90301-MG3-000 Nut, u (6mm) |
90301-MG3-000 |
from US $3.92 |
||
|
22
|
22
90441-MC0-000 Washer (7mm) |
90441-MC0-000 |
from US $1.94 |
||
|
23
|
23
90475-703-000 Washer c (8mm) |
90475-703-000 |
from US $0.78 |
||
|
24
|
24
91202-KK0-003 Oil seal (18x29x7) |
91202-KK0-003 |
from US $5.91 |
||
|
24
|
24
91202-KK0-005 Oil seal (18x29x7) |
91202-KK0-005 |
US $7.63 |
||
| replacement | |||||
|
24
|
24
91202-KK0-003 Oil seal (18x29x7) |
91202-KK0-003 |
from US $5.91 |
||
|
25
|
25
91203-MC8-003 Oil seal (12x22x5)- 5105818 |
91203-MC8-003 |
US $3.84 |
||
| replacement | |||||
|
25
|
25
91201-965-000 Oil seal (12x22x5)- 5105818 |
91201-965-000 |
from US $2.66 |
||
|
25
|
25
91201-965-000 Oil seal (12x22x5)5105819 - |
91201-965-000 |
from US $2.66 |
||
|
26
|
26
91204-KK0-003 Oil seal (12x18x5) |
91204-KK0-003 |
from US $2.18 |
||
|
27
|
27
91302-KF0-003 O-RING, 54X2.4 (ARAI) |
91302-KF0-003 |
from US $2.27 |
||
|
28
|
28
91303-KE7-003 O-ring7.2X1.7 (ARAI) |
91303-KE7-003 |
US $2.67 |
||
| replacement | |||||
|
28
|
28
91312-107-000 O-ring (7x1.7) |
91312-107-000 |
from US $1.42 |
||
|
29
|
29
91307-KF0-003 O-ring (18x3) |
91307-KF0-003 |
from US $1.39 |
||
|
30
|
30
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
31
|
31
94510-10000 CirclipEXTERNAL, 10MM |
94510-10000 |
from US $0.44 |
||
|
32
|
32
96000-0601000 Bolt, flange, 6x10 |
96000-0601000 |
from US $0.59 |
||
| replacement | |||||
|
32
|
32
96001-060-100-0 BoltFLANGE, 6X10 |
96001-060-100-0 |
from US $0.59 |
||
|
33
|
33
96000-0601800 Bolt, flange (6x18) |
96000-0601800 |
US $1.56 |
||
| replacement | |||||
|
33
|
33
96001-060-180-0 BoltFLANGE, 6X18 |
96001-060-180-0 |
from US $0.62 |
||
|
34
|
34
96000-0602507 Bolt, flange (6x25) |
96000-0602507 |
US $1.46 |
||
| replacement | |||||
|
34
|
34
96001-0602507 Bolt, flange (6x25) |
96001-0602507 |
from US $0.59 |
||
|
35
|
35
96000-0602807
Bolt, flange (6x28)
|
96000-0602807 |
— | ||
| replacement | |||||
|
35
|
35
96001-0602807 Bolt, flange (6x28) |
96001-0602807 |
from US $0.74 |
||
|
36
|
36
96000-0604007 Bolt, flange (6x40) |
96000-0604007 |
US $1.22 |
||
| replacement | |||||
|
36
|
36
96001-0604007 Bolt, flange (6x40) |
96001-0604007 |
from US $0.74 |
||
|
37
|
37
96000-0604507 Bolt, flange (6x45) |
96000-0604507 |
from US $0.81 |
||
| replacement | |||||
|
37
|
37
96001-0604507 Bolt, flange (6x45) |
96001-0604507 |
from US $0.81 |
||
|
38
|
38
96000-0606007 Bolt, flange (6x60) |
96000-0606007 |
from US $0.81 |
||
| replacement | |||||
|
38
|
38
96001-0606007 Bolt, flange (6x60) |
96001-0606007 |
from US $0.81 |
||
