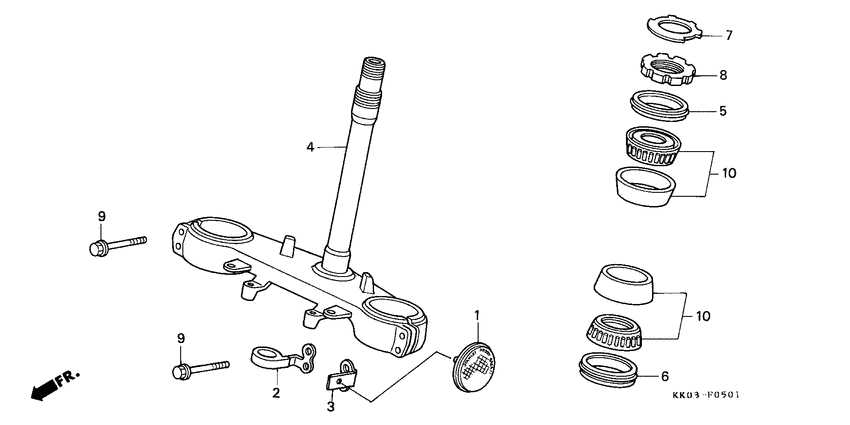

Steering stem (2) Diagram Honda XR200
- Year
- 1992
- Model code
- XR200RN
- Sales region
- Canada
- Frame
- JH2ME052*NK700002 - JH2ME052*NK700123
- Engine Capacity
- 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33742-HB9-641 Reflector, fr. |
33742-HB9-641 |
from US $11.27 |
||
|
2
|
2
45460-KT0-830 Guide, brake cable |
45460-KT0-830 |
US $12.97 |
||
|
3
|
3
45467-KL4-670 Stay, fr. reflector |
45467-KL4-670 |
US $7.97 |
||
|
4
|
4
53200-KT0-830
Stem, steering
|
53200-KT0-830 |
— | ||
| replacement | |||||
|
4
|
4
53219-KT0-A00
Stem sub-assy., strg
|
53219-KT0-A00 |
— | ||
|
5
|
5
53214-KA3-732 Dust seal |
53214-KA3-732 |
from US $4.88 |
||
|
6
|
6
53214-KA4-701 Dust seal |
53214-KA4-701 |
from US $3.42 |
||
|
7
|
7
53228-KN5-000 Washer, top thread |
53228-KN5-000 |
from US $4.59 |
||
|
8
|
8
53229-KN5-650 Thread |
53229-KN5-650 |
from US $15.78 |
||
|
9
|
9
96300-0803500 Bolt, flange (8x35) |
96300-0803500 |
from US $0.90 |
||
|
10
|
10
91015-425-831 Bearing, head pipe |
91015-425-831 |
US $31.28 |
||
| replacement | |||||
|
10
|
10
91015-425-832 Bearing, head pipe |
91015-425-832 |
from US $26.79 |
||
|
10
|
10
91015-425-832 Bearing, head pipe |
91015-425-832 |
from US $26.79 |
||
