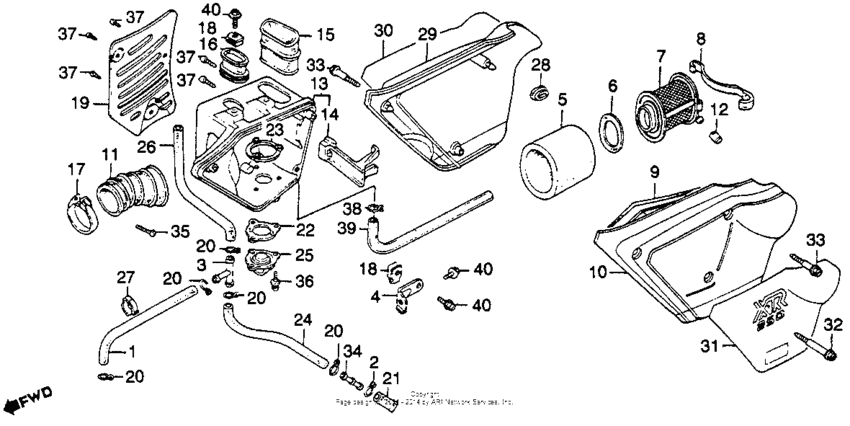

Air cleaner Diagram Honda XR250
- Year
- 1979
- Model code
- XR250 A
- Sales region
- USA
- Frame
- ME015000032 -
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15761-428-000
Tube,breather
|
15761-428-000 |
— | ||
|
2
|
2
15772-292-010 Clip, breather tube |
15772-292-010 |
from US $2.44 |
||
|
3
|
3
15772-376-000 Joint |
15772-376-000 |
from US $9.62 |
||
|
4
|
4
17201-428-000
Stay,air cleaner
|
17201-428-000 |
— | ||
|
5
|
5
17211-428-000 Element air/c |
17211-428-000 |
from US $17.44 |
||
|
6
|
6
17213-428-300 Rub,element seal |
17213-428-300 |
US $7.84 |
||
|
7
|
7
17214-428-000
Holder,element
|
17214-428-000 |
— | ||
|
8
|
8
17217-385-000 Spg.,element set |
17217-385-000 |
US $14.01 |
||
|
9
|
9
17219-413-000 Seal |
17219-413-000 |
from US $4.97 |
||
|
10
|
10
17220-428-870ZB
Cover *r23*
|
17220-428-870ZB |
— | ||
|
11
|
11
17222-428-000
Tube,air/c conn
|
17222-428-000 |
— | ||
|
12
|
12
17227-428-000
Cap,element proof
|
17227-428-000 |
— | ||
|
13
|
13
17230-434-000
Housing, air cleaner
|
17230-434-000 |
— | ||
|
14
|
14
17231-428-300
Holder,set spg
|
17231-428-300 |
— | ||
|
15
|
15
17240-428-000
Tube,air/c in
|
17240-428-000 |
— | ||
|
16
|
16
17241-434-000
Tube b
|
17241-434-000 |
— | ||
|
17
|
17
9501852250 Band, air cleaner connecting tube (52) |
9501852250 |
from US $3.26 |
||
|
18
|
18
17254-428-000
Nut,air/c set
|
17254-428-000 |
— | ||
|
19
|
19
17260-428-000
Protector,air/c
|
17260-428-000 |
— | ||
|
20
|
20
17316-611-000 Clip, breather tube |
17316-611-000 |
from US $2.29 |
||
|
21
|
21
17358-KEJ-900 Tube,drain |
17358-KEJ-900 |
US $7.99 |
||
|
22
|
22
17367-428-000
Rub,brthr seal
|
17367-428-000 |
— | ||
|
23
|
23
17368-428-000
Plate,sep back
|
17368-428-000 |
— | ||
|
24
|
24
17369-428-000
Tube b,drain
|
17369-428-000 |
— | ||
|
25
|
25
17372-428-000
Plate
|
17372-428-000 |
— | ||
|
26
|
26
17373-428-000
Tube,breather a
|
17373-428-000 |
— | ||
|
27
|
27
32975-428-000
Clip,pulser cord
|
32975-428-000 |
— | ||
|
28
|
28
83551-300-000 Grommet, air cleaner case |
83551-300-000 |
from US $1.28 |
||
|
29
|
29
83600-434-000ZA
Cvr, r. *r23/nh105*
|
83600-434-000ZA |
— | ||
|
30
|
30
87129-434-770
Emb r side cover
|
87129-434-770 |
— | ||
|
31
|
31
87128-434-770
Emb, a/clnr hsg cvr
|
87128-434-770 |
— | ||
|
32
|
32
90112-434-000
Bolt a,case set
|
90112-434-000 |
— | ||
|
33
|
33
90113-434-000
Bolt c,cleanerset
|
90113-434-000 |
— | ||
|
34
|
34
91463-393-780 Joint, tube |
91463-393-780 |
from US $1.92 |
||
|
35
|
35
93500-050250G Screw, pan, 5x25 |
93500-050250G |
from US $0.44 |
||
|
36
|
36
93891-040-120-8 Screw-washer4X12 |
93891-040-120-8 |
from US $0.44 |
||
|
37
|
37
93901-34520 ScrewTAPPING, 4X20 |
93901-34520 |
from US $0.37 |
||
|
38
|
38
9500202130 Clip, tube (b12.5) |
9500202130 |
from US $0.52 |
||
|
39
|
39
95003-230-0310M Tube (8x12x3000) |
95003-230-0310M |
from US $7.99 |
||
|
40
|
40
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
