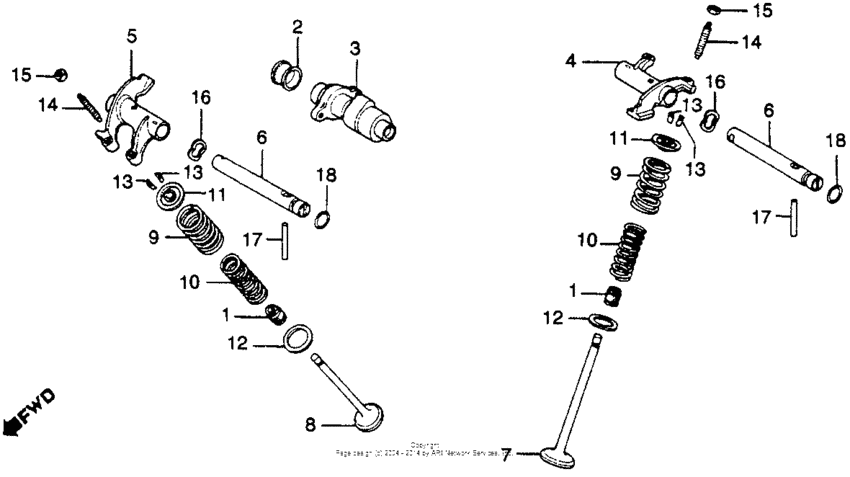

Camshaft + valve Diagram Honda XR250
- Year
- 1979
- Model code
- XR250 A
- Sales region
- USA
- Frame
- ME015000032 -
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12209-428-003 Seal, valve stem |
12209-428-003 |
US $13.87 |
||
| replacement | |||||
|
1
|
1
12208-413-003 Seal, valve stem (arai) |
12208-413-003 |
from US $7.84 |
||
|
2
|
2
12312-428-000 Plug, camshaft |
12312-428-000 |
from US $11.69 |
||
|
3
|
3
14101-471-010
Camshaft
|
14101-471-010 |
— | ||
|
4
|
4
14431-428-000
Arm,in va rocker
|
14431-428-000 |
— | ||
|
5
|
5
14441-428-000
Arm,ex va rocker
|
14441-428-000 |
— | ||
|
6
|
6
14451-428-000
Shaft,rocker arm
|
14451-428-000 |
— | ||
|
7
|
7
14711-428-000
Valve,in.
|
14711-428-000 |
— | ||
|
8
|
8
14721-471-000
Valve,ex.
|
14721-471-000 |
— | ||
|
9
|
9
14751-428-003
Spg,valve outer
|
14751-428-003 |
— | ||
|
10
|
10
14761-428-003
Spg,valve inner
|
14761-428-003 |
— | ||
|
11
|
11
14771-428-000
Retainer,valvespg
|
14771-428-000 |
— | ||
|
12
|
12
14775-428-000
Seat,valve spg
|
14775-428-000 |
— | ||
|
13
|
13
14781-107-003 Cotter, valve (sanko) |
14781-107-003 |
from US $3.18 |
||
|
14
|
14
90012-333-000 Screw, tappet adjusting |
90012-333-000 |
from US $3.03 |
||
|
15
|
15
90206-KM3-000 Nut, tappet adjusting |
90206-KM3-000 |
from US $1.78 |
||
|
16
|
16
90402-428-000 Washer, wave (12mm) |
90402-428-000 |
from US $2.66 |
||
|
17
|
17
91101-428-000 Pin,dowel,5x28 |
91101-428-000 |
from US $4.29 |
||
|
18
|
18
91303-428-003 O-ring, 7.7x2.5 |
91303-428-003 |
from US $2.66 |
||
