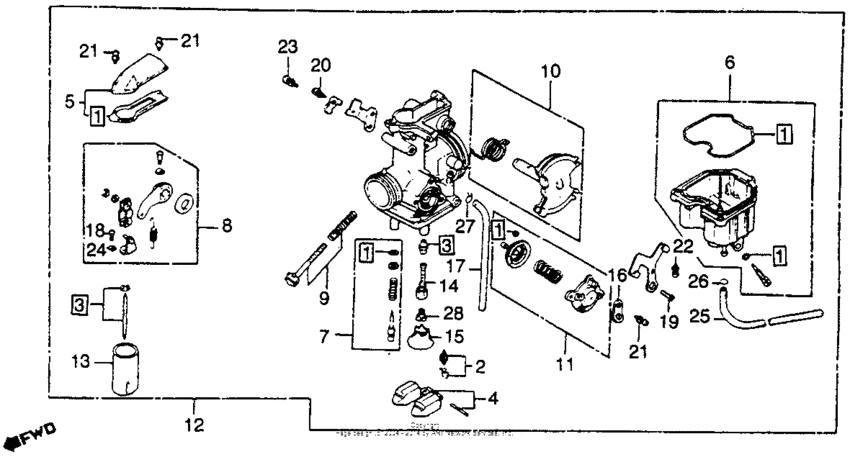

Carburetor 79 Diagram Honda XR250
- Year
- 1979
- Model code
- XR250 A
- Sales region
- USA
- Frame
- ME015000032 -
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-434-305 Gasket set |
16010-434-305 |
from US $30.71 |
||
|
2
|
2
16011-KCK-910 Valve set, float |
16011-KCK-910 |
from US $41.85 |
||
|
3
|
3
16012-434-004
Needle set,jet
|
16012-434-004 |
— | ||
|
4
|
4
16013-KCY-670 Float set |
16013-KCY-670 |
US $73.92 |
||
|
5
|
5
16014-KCE-771
Top set
|
16014-KCE-771 |
— | ||
|
6
|
6
16015-434-004
Chamber set,float
|
16015-434-004 |
— | ||
|
7
|
7
16016-402-004 Screw set a |
16016-402-004 |
from US $17.27 |
||
|
8
|
8
16018-KCE-771 Arm set, link |
16018-KCE-771 |
from US $101.05 |
||
|
9
|
9
16028-428-004
Screw set b
|
16028-428-004 |
— | ||
|
10
|
10
16032-428-004
Link set,throttle
|
16032-428-004 |
— | ||
|
11
|
11
16048-428-305
Air cut valve set
|
16048-428-305 |
— | ||
|
12
|
12
16100-434-014
Carburetor assy.
|
16100-434-014 |
— | ||
|
13
|
13
16111-428-004
Valve,throttle
|
16111-428-004 |
— | ||
|
14
|
14
16165-428-841
Holder,needle jet
|
16165-428-841 |
— | ||
|
15
|
15
16168-382-014 Holder, jet |
16168-382-014 |
from US $7.55 |
||
|
16
|
16
16179-428-671
Binder
|
16179-428-671 |
— | ||
|
17
|
17
16199-428-405 Tube |
16199-428-405 |
from US $4.91 |
||
|
18
|
18
93500-030080H Screw, pan, 3x8 |
93500-030080H |
from US $0.37 |
||
|
19
|
19
93600-050-100-H ScrewFLAT, 5X10 |
93600-050-100-H |
from US $0.38 |
||
|
20
|
20
93892-040-080-8 Screw-washer4X8 |
93892-040-080-8 |
from US $0.49 |
||
|
21
|
21
93892-040-120-8 Screw-washer4X12 |
93892-040-120-8 |
from US $0.49 |
||
|
22
|
22
93892-050-100-8 Screw-washer5X10 |
93892-050-100-8 |
from US $0.44 |
||
|
23
|
23
93892-050-100-8 Screw-washer5X10 |
93892-050-100-8 |
from US $0.44 |
||
|
24
|
24
94111-03800 WasherSPRING, 3MM |
94111-03800 |
from US $0.37 |
||
|
25
|
25
95001-350-0360M Bulk hose (3.5x3000) |
95001-350-0360M |
from US $13.99 |
||
|
26
|
26
95002-02070 ClipTUBE(B7) |
95002-02070 |
from US $0.44 |
||
|
27
|
27
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
||
|
28
|
28
16110-434-004
Jet set, main
(Optional). |
16110-434-004 |
— | ||
|
28
|
28
99101-3571220 Jet, main (#122) |
99101-3571220 |
from US $6.66 |
