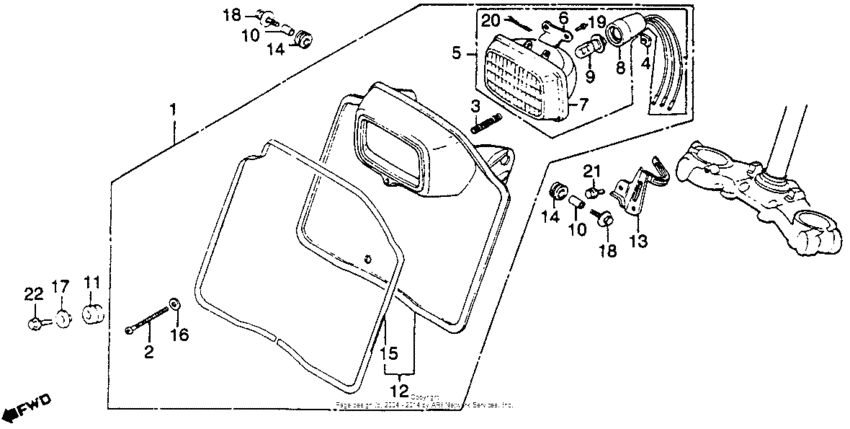

Headlight Diagram Honda XR250
- Year
- 1979
- Model code
- XR250 A
- Sales region
- USA
- Frame
- ME015000032 -
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-434-671ZA
Head light
|
33100-434-671ZA |
— | ||
|
2
|
2
33103-434-670
Screw,beam adjust
|
33103-434-670 |
— | ||
|
3
|
3
33107-246-003 Spring |
33107-246-003 |
from US $2.44 |
||
|
4
|
4
33117-041-003 Nut, beam adj. |
33117-041-003 |
from US $2.81 |
||
|
5
|
5
33120-434-672
Headlight unit
|
33120-434-672 |
— | ||
|
6
|
6
33122-434-671
Stay, headlight
|
33122-434-671 |
— | ||
|
7
|
7
33125-434-671
Lens,headlight
|
33125-434-671 |
— | ||
|
8
|
8
33130-434-672
Socket,headlight
|
33130-434-672 |
— | ||
|
9
|
9
34901-030-003 Bulb head light |
34901-030-003 |
from US $6.79 |
||
|
9
|
9
34901-087-640 Blub,headlight |
34901-087-640 |
from US $4.74 |
||
|
10
|
10
35851-292-000
Collar magnetic
|
35851-292-000 |
— | ||
|
12
|
12
61300-434-000ZA
Case *r23/nh105*
|
61300-434-000ZA |
— | ||
|
13
|
13
61311-434-000
Stay, headlight
|
61311-434-000 |
— | ||
|
14
|
14
80105-061-000 Rubber a, rr. fender |
80105-061-000 |
from US $3.11 |
||
|
15
|
15
87126-434-300
Stripe,light case
|
87126-434-300 |
— | ||
|
16
|
16
90286-147-670 Washer, beam adj. |
90286-147-670 |
from US $1.70 |
||
|
17
|
17
90512-300-000 Washer (6x20) |
90512-300-000 |
from US $2.22 |
||
|
18
|
18
93404-0602000 Bolt-washer, 6x20 |
93404-0602000 |
from US $0.52 |
||
|
19
|
19
93500-040-080-A ScrewPAN, 4X8 |
93500-040-080-A |
from US $0.38 |
||
|
20
|
20
94201-30350 PinSPLIT, 3.0X35 |
94201-30350 |
from US $0.44 |
||
|
21
|
21
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
22
|
22
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
