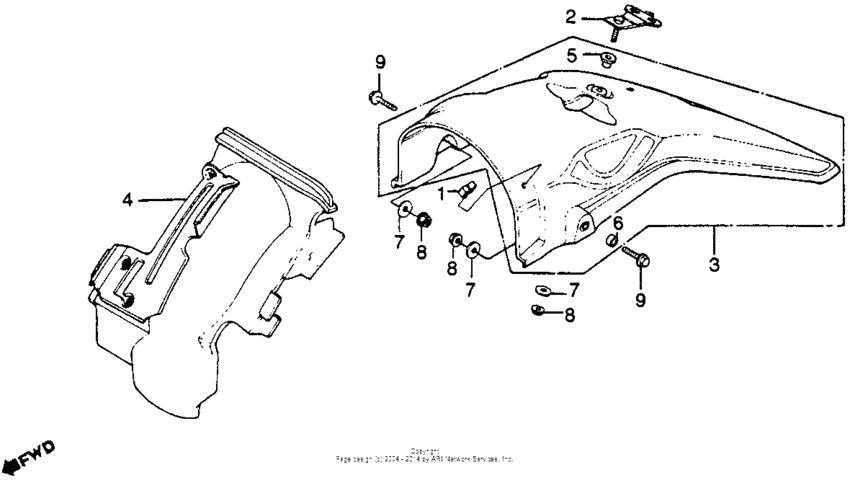

Rear fender Diagram Honda XR250
- Year
- 1979
- Model code
- XR250 A
- Sales region
- USA
- Frame
- ME015000032 -
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32985-300-000 Grommet, cable |
32985-300-000 |
from US $3.66 |
||
|
2
|
2
33720-434-000
Stay, taillight
|
33720-434-000 |
— | ||
|
3
|
3
80100-434-000ZA
Fender,rr,*r-23*
|
80100-434-000ZA |
— | ||
|
4
|
4
80105-428-000
Fender b rr
|
80105-428-000 |
— | ||
|
5
|
5
90121-KE6-830 Bolt,rr.fork pivt |
90121-KE6-830 |
US $14.43 |
||
|
6
|
6
90512-122-700
Collar 9x12x4.5
|
90512-122-700 |
— | ||
|
7
|
7
90525-434-000
Washer, plain, 6mm
|
90525-434-000 |
— | ||
|
8
|
8
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
9
|
9
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
