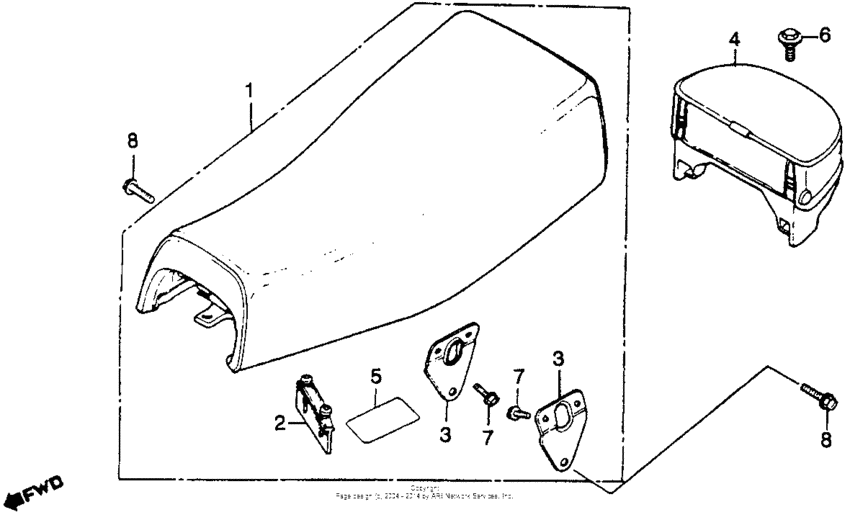

Seat Diagram Honda XR250
- Year
- 1979
- Model code
- XR250 A
- Sales region
- USA
- Frame
- ME015000032 -
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77200-434-000
Seat assy.
|
77200-434-000 |
— | ||
|
2
|
2
77201-434-000
Rubber seat
|
77201-434-000 |
— | ||
|
3
|
3
77202-428-000
Stay a,seat
|
77202-428-000 |
— | ||
|
4
|
4
83501-434-000ZA
Bag,tool *r-23*
|
83501-434-000ZA |
— | ||
|
5
|
5
87508-434-300
Mark
|
87508-434-300 |
— | ||
|
6
|
6
90109-434-000 Bolt, special, 6mm |
90109-434-000 |
from US $3.11 |
||
|
7
|
7
95700-060-100-8 BoltFLANGE, 6X10 |
95700-060-100-8 |
US $24.80 |
||
| replacement | |||||
|
7
|
7
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
7
|
7
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
8
|
8
95701-080-200-0 Bolt, flange, 8x20 |
95701-080-200-0 |
from US $0.59 |
||
