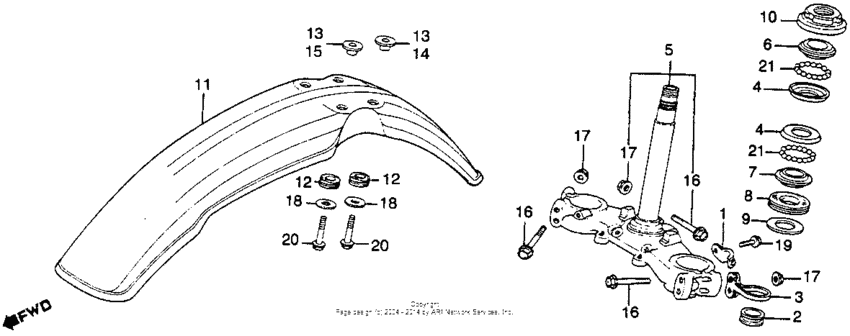

Steering stem + front fender Diagram Honda XR250
- Year
- 1979
- Model code
- XR250 A
- Sales region
- USA
- Frame
- ME015000032 -
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45465-428-000
Clamp spdmt cable
|
45465-428-000 |
— | ||
|
2
|
2
45466-329-000 Guide, cable (inner) |
45466-329-000 |
from US $4.04 |
||
|
3
|
3
45468-428-000
Guide b brk,cable
|
45468-428-000 |
— | ||
|
4
|
4
50301-268-010 Race, steering ball |
50301-268-010 |
from US $11.84 |
||
|
5
|
5
53200-434-000
Stem, steering
|
53200-434-000 |
— | ||
|
6
|
6
53211-268-010 Race, steering cone |
53211-268-010 |
from US $14.42 |
||
|
7
|
7
53212-200-305 Race, steering cone |
53212-200-305 |
from US $24.14 |
||
|
8
|
8
53214-200-000 Dust seal |
53214-200-000 |
from US $2.14 |
||
|
9
|
9
53215-200-000 Washer |
53215-200-000 |
from US $1.82 |
||
|
10
|
10
53220-286-000 Thread (upper) |
53220-286-000 |
from US $21.42 |
||
|
11
|
11
61100-434-000ZA
Fender,fr.*r-23*
|
61100-434-000ZA |
— | ||
|
12
|
12
61103-357-000 Rubber, fr. fender mounting |
61103-357-000 |
from US $0.14 |
||
|
13
|
13
61104-428-000
Collar, fr. fender
|
61104-428-000 |
— | ||
| replacement | |||||
|
13
|
13
61104-428-010 Collar, fr. fender |
61104-428-010 |
from US $4.07 |
||
|
13
|
13
61105-428-000
Collar, rr. fender
|
61105-428-000 |
— | ||
|
16
|
16
90125-428-000
Bolt,flg
|
90125-428-000 |
— | ||
|
17
|
17
9405008020 Nut, flange, 8mm |
9405008020 |
from US $0.59 |
||
|
18
|
18
90545-292-000 Washer, 6.5x20 |
90545-292-000 |
from US $2.59 |
||
|
19
|
19
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
|
20
|
20
95701-060-250-0 BoltFLANGE, 6X25 |
95701-060-250-0 |
from US $0.59 |
||
|
21
|
21
96211-08000 Ball |
96211-08000 |
from US $0.22 |
||
