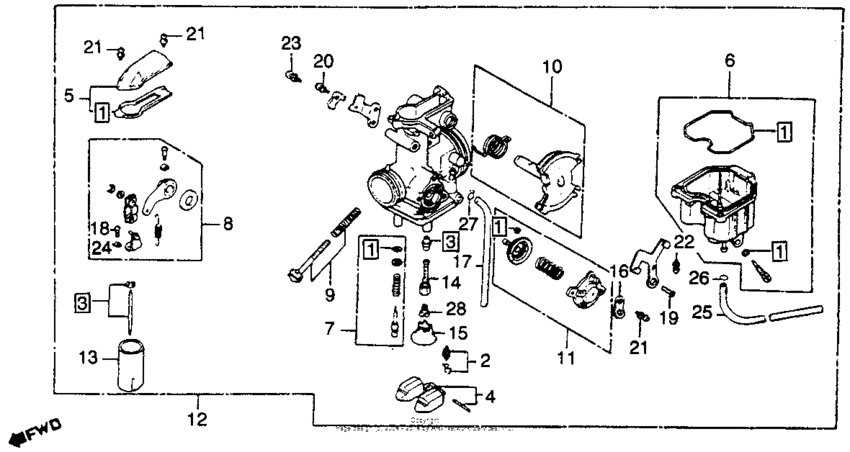

Carburetor 80 Diagram Honda XR250
- Year
- 1980
- Model code
- XR250 A
- Sales region
- USA
- Frame
- ME015100001 -
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-434-305 Gasket set |
16010-434-305 |
from US $30.71 |
||
|
2
|
2
16011-KCK-910 Valve set, float |
16011-KCK-910 |
from US $41.85 |
||
|
3
|
3
16012-434-771
Needle set,jet
|
16012-434-771 |
— | ||
|
4
|
4
16013-KCY-670 Float set |
16013-KCY-670 |
US $73.92 |
||
|
5
|
5
16014-KCE-771
Top set
|
16014-KCE-771 |
— | ||
|
6
|
6
16015-KCE-671 Chamber set, float |
16015-KCE-671 |
from US $90.83 |
||
|
7
|
7
16016-402-004 Screw set a |
16016-402-004 |
from US $17.27 |
||
|
8
|
8
16018-KCE-771 Arm set, link |
16018-KCE-771 |
from US $101.05 |
||
|
9
|
9
16019-429-771
Lever,choke
|
16019-429-771 |
— | ||
|
10
|
10
16028-435-004
Screw set b
|
16028-435-004 |
— | ||
|
11
|
11
16032-428-004
Link set,throttle
|
16032-428-004 |
— | ||
|
12
|
12
16048-443-901 Valve set, air cut |
16048-443-901 |
US $118.32 |
||
|
13
|
13
16100-434-771 Carburetor assy. |
16100-434-771 |
US $754.70 |
||
|
14
|
14
16111-428-004
Valve,throttle
|
16111-428-004 |
— | ||
|
15
|
15
16119-429-771 Plate |
16119-429-771 |
from US $7.55 |
||
|
16
|
16
16199-KG4-405 Tube |
16199-KG4-405 |
from US $6.51 |
||
|
17
|
17
16165-428-841
Holder,needle jet
|
16165-428-841 |
— | ||
|
18
|
18
16168-382-014 Holder, jet |
16168-382-014 |
from US $7.55 |
||
|
19
|
19
16199-428-771 Tube,overflow |
16199-428-771 |
US $7.55 |
||
|
20
|
20
93500-030080H Screw, pan, 3x8 |
93500-030080H |
from US $0.37 |
||
|
21
|
21
93600-050-100-H ScrewFLAT, 5X10 |
93600-050-100-H |
from US $0.38 |
||
|
22
|
22
93892-040-100-8 Screw-washer4X10 |
93892-040-100-8 |
from US $0.49 |
||
|
23
|
23
93892-040-120-8 Screw-washer4X12 |
93892-040-120-8 |
from US $0.49 |
||
|
24
|
24
93892-040-160-8 Screw-washer4X16 |
93892-040-160-8 |
from US $0.44 |
||
|
25
|
25
94111-03800 WasherSPRING, 3MM |
94111-03800 |
from US $0.37 |
||
|
26
|
26
95002-02070 ClipTUBE(B7) |
95002-02070 |
from US $0.44 |
||
|
27
|
27
9500202650 Clip, tube (b6.5) |
9500202650 |
from US $0.44 |
||
|
28
|
28
16110-434-004
Jet set, main
(Optional). |
16110-434-004 |
— | ||
|
28
|
28
99113-GHB1050 Jet, main (#105)(Optional). |
99113-GHB1050 |
from US $6.66 |
||
|
28
|
28
99113-GHB1080 Jet, main (#108)(Optional). |
99113-GHB1080 |
from US $6.66 |
||
|
28
|
28
99113-GHB1100 Jet, main (#110)(Optional). |
99113-GHB1100 |
from US $6.66 |
||
|
28
|
28
99113-GHB1120 Jet, main (#112)(Optional). |
99113-GHB1120 |
from US $6.66 |
||
|
28
|
28
99101-3571150 Jet, main (#115)(Optional). |
99101-3571150 |
from US $6.66 |
||
|
28
|
28
99101-3571180 Jet, main (#118)(Optional). |
99101-3571180 |
from US $6.66 |
||
|
28
|
28
99101-3571200 Jet, main (#120) |
99101-3571200 |
from US $6.66 |
||
|
28
|
28
99101-3571220 Jet, main (#122)(Optional). |
99101-3571220 |
from US $6.66 |
||
|
28
|
28
99101-3571250 Jet, main (#125)(Optional). |
99101-3571250 |
from US $6.66 |
