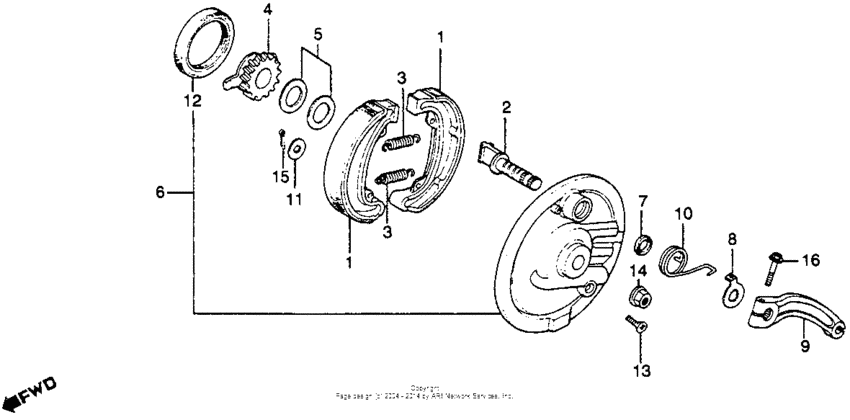

Front brake panel Diagram Honda XR250
- Year
- 1980
- Model code
- XR250 A
- Sales region
- USA
- Frame
- ME015100001 -
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
06450-KC2-680 Shoe set, brake |
06450-KC2-680 |
from US $25.25 |
||
|
NI
|
NI
431A2-329-670 Set brake shoe |
431A2-329-670 |
US $38.91 |
||
| replacement | |||||
|
NI
|
NI
06450-KC2-680 Shoe set, brake |
06450-KC2-680 |
from US $25.25 |
||
|
1
|
1
06450-KC2-680 Shoe set, brake |
06450-KC2-680 |
from US $25.25 |
||
|
1
|
1
43120-329-670 Shoe,rear brake |
43120-329-670 |
US $39.73 |
||
| replacement | |||||
|
1
|
1
06450-KC2-680 Shoe set, brake |
06450-KC2-680 |
from US $25.25 |
||
|
2
|
2
43141-ME4-000
Cam rear brake
|
43141-ME4-000 |
— | ||
|
3
|
3
43151-329-000 Spring, brake shoe |
43151-329-000 |
from US $2.96 |
||
|
4
|
4
44804-428-000
Gear speedometer
|
44804-428-000 |
— | ||
|
5
|
5
44809-402-000 Washer |
44809-402-000 |
from US $2.44 |
||
|
6
|
6
45010-428-000
Panel sub brake
|
45010-428-000 |
— | ||
|
7
|
7
45134-250-000 Dust seal, brake cam |
45134-250-000 |
from US $2.15 |
||
|
8
|
8
45145-428-000
Indicater brake
|
45145-428-000 |
— | ||
|
9
|
9
45410-434-000
Arm,rr.brake
|
45410-434-000 |
— | ||
|
10
|
10
45435-428-000
Spg brake arm rtn
|
45435-428-000 |
— | ||
|
11
|
11
90524-030-000 Washer aHANDLE HOLDER SETTING |
90524-030-000 |
from US $2 |
||
|
12
|
12
91251-GK4-003 Oil seal (47x60x7) |
91251-GK4-003 |
from US $6.81 |
||
|
13
|
13
93700-050160A Screw, oval (5x16) |
93700-050160A |
from US $0.37 |
||
|
14
|
14
94050-12000 Nut, flange, 12mm |
94050-12000 |
from US $0.81 |
||
|
15
|
15
94201-29220
Pin
|
94201-29220 |
— | ||
| replacements | |||||
|
15
|
15
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
15
|
15
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
15
|
15
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
15
|
15
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
16
|
16
95700-060-280-0 BoltFLANGE, 6X28 |
95700-060-280-0 |
from US $0.59 |
||
| replacement | |||||
|
16
|
16
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
|
16
|
16
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
