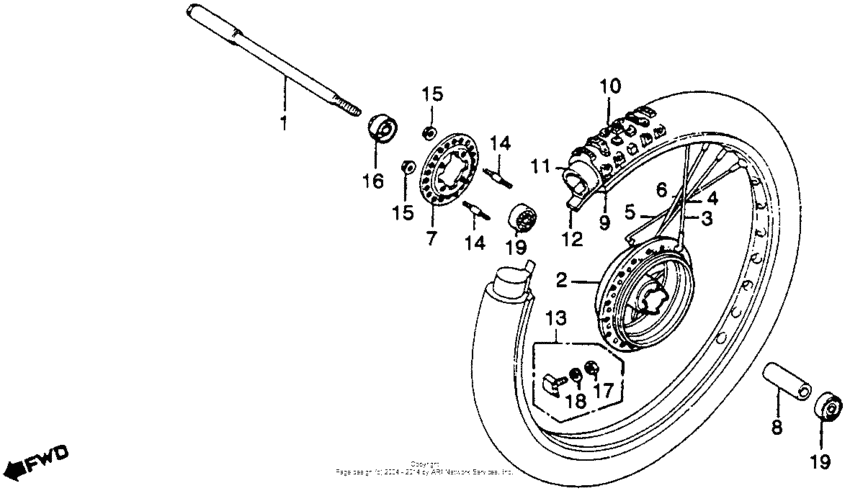

Front wheel Diagram Honda XR250
- Year
- 1980
- Model code
- XR250 A
- Sales region
- USA
- Frame
- ME015100001 -
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44301-434-000
Axle,fr.wheel
|
44301-434-000 |
— | ||
|
2
|
2
44601-430-000
Hub.fr wheel
|
44601-430-000 |
— | ||
|
3
|
3
44606-444-305
Spoke a,assy fr
|
44606-444-305 |
— | ||
|
4
|
4
44607-444-305
Spoke b,assy fr
|
44607-444-305 |
— | ||
|
5
|
5
44608-444-305
Spoke c,assy fr
|
44608-444-305 |
— | ||
|
6
|
6
44609-444-305
Spoke d,assy fr
|
44609-444-305 |
— | ||
|
7
|
7
44610-429-000
Flange,fr.spoke
|
44610-429-000 |
— | ||
|
8
|
8
44620-434-000 Collar,distance |
44620-434-000 |
US $22.40 |
||
|
9
|
9
44701-428-003 Rim,fr.wheel |
44701-428-003 |
US $563.20 |
||
|
10
|
10
44711-434-003
Tire,fr
|
44711-434-003 |
— | ||
|
11
|
11
44712-435-003
Tube,tire
|
44712-435-003 |
— | ||
|
12
|
12
44713-434-003
Flap,tire
|
44713-434-003 |
— | ||
|
13
|
13
44715-444-000
Stopper,bead
|
44715-444-000 |
— | ||
|
14
|
14
90135-107-720 Bolt, stud (6x28) |
90135-107-720 |
from US $2.89 |
||
|
15
|
15
90352-122-003 Nut, driven sprocket (tokai) |
90352-122-003 |
from US $4.74 |
||
|
16
|
16
91254-430-003 Dust seal, 20x35x7 (arai) |
91254-430-003 |
from US $10.42 |
||
|
17
|
17
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
18
|
18
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
19
|
19
96140-6202010 Bearing (6202u) |
96140-6202010 |
from US $6.51 |
