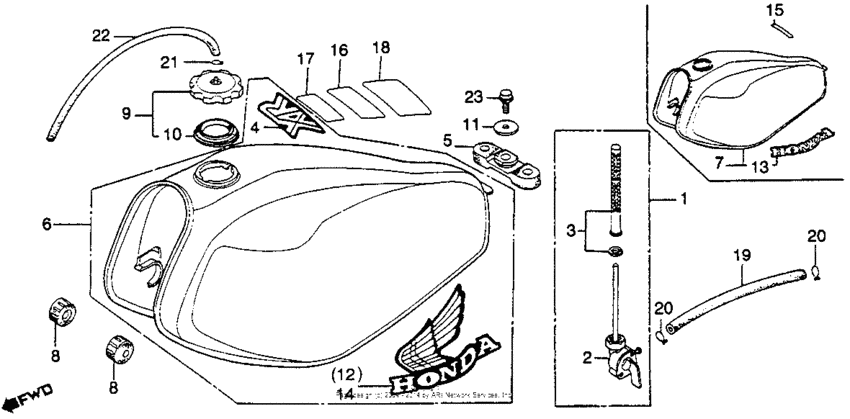

Fuel tank Diagram Honda XR250
- Year
- 1980
- Model code
- XR250 A
- Sales region
- USA
- Frame
- ME015100001 -
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-434-015
Cock assy,fuel
|
16950-434-015 |
— | ||
|
2
|
2
16951-434-015
Body comp.,cock
|
16951-434-015 |
— | ||
|
3
|
3
16952-434-005
Screen set,fuel
|
16952-434-005 |
— | ||
|
4
|
4
17506-429-771
Mark,fuel tank
|
17506-429-771 |
— | ||
|
5
|
5
17509-429-000
Rubber,rr.tank
|
17509-429-000 |
— | ||
|
6
|
6
17520-429-771ZA
Tank sub *r-23*
|
17520-429-771ZA |
— | ||
|
8
|
8
17611-MG2-000 Rubber, fr |
17611-MG2-000 |
from US $7.99 |
||
|
9
|
9
17620-434-010
Cap,fuel filler
|
17620-434-010 |
— | ||
|
10
|
10
17631-899-000 Packing, fuel filler cap |
17631-899-000 |
US $8.16 |
||
| replacement | |||||
|
10
|
10
17631-899-010 Packing, fuel filler cap |
17631-899-010 |
US $3.70 |
||
|
11
|
11
90136-428-870 Washer, tank setting |
90136-428-870 |
from US $2.37 |
||
|
12
|
12
87123-429-771
Mark, r.fuel tank
|
87123-429-771 |
— | ||
|
14
|
14
87124-429-771
Mark, l.fuel tank
|
87124-429-771 |
— | ||
|
16
|
16
87504-130-720ZA
Label *nh1*
|
87504-130-720ZA |
— | ||
|
17
|
17
87510-147-670ZB
Label *nh0*
|
87510-147-670ZB |
— | ||
|
18
|
18
87560-375-680ZF Mark (type-w) Remember (Clear-white) |
87560-375-680ZF |
from US $5.77 |
||
|
19
|
19
91461-434-771
Tube fuel 5.3x220
|
91461-434-771 |
— | ||
|
20
|
20
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
|
21
|
21
95002-50000 ClipTUBE(C9) |
95002-50000 |
from US $0.37 |
||
|
22
|
22
95005-500-0330M Bulk hose (5x3000) |
95005-500-0330M |
from US $14.96 |
||
|
23
|
23
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
