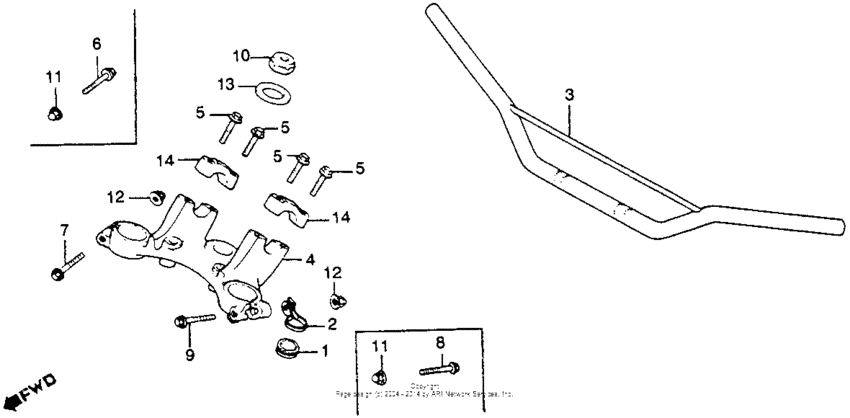

Handebar + top bridge Diagram Honda XR250
- Year
- 1980
- Model code
- XR250 A
- Sales region
- USA
- Frame
- ME015100001 -
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45466-329-000 Guide, cable (inner) |
45466-329-000 |
from US $4.04 |
||
|
2
|
2
45467-428-000
Guide a brk cable
|
45467-428-000 |
— | ||
|
3
|
3
53100-428-000
Pipe strg handle
|
53100-428-000 |
— | ||
|
4
|
4
53230-428-000 Bridge,fork top |
53230-428-000 |
US $143.77 |
||
|
5
|
5
90111-362-000 Bolt, flange (8x36) |
90111-362-000 |
from US $2.14 |
||
|
8
|
8
90155-428-870 Bolt,flange,7x54 |
90155-428-870 |
US $4.77 |
||
|
9
|
9
90156-428-870 Bolt,flange,7x57 |
90156-428-870 |
US $4.88 |
||
|
10
|
10
90304-428-870
Nut,stem
|
90304-428-870 |
— | ||
|
12
|
12
90360-428-870
Nut,cap,7mm
|
90360-428-870 |
— | ||
|
13
|
13
90503-425-000 Washer |
90503-425-000 |
from US $2.89 |
||
|
14
|
14
9501422200 Holder b2, handlebar |
9501422200 |
from US $7.70 |
