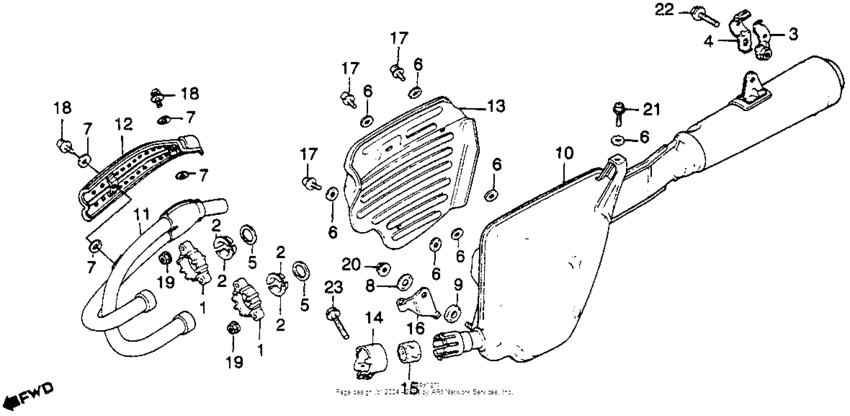

Muffler Diagram Honda XR250
- Year
- 1980
- Model code
- XR250 A
- Sales region
- USA
- Frame
- ME015100001 -
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18231-428-870
Joint,ex.pipe
|
18231-428-870 |
— | ||
|
2
|
2
18233-434-000
Collar,pipe joint
|
18233-434-000 |
— | ||
|
3
|
3
18283-428-000
Band a sub muff
|
18283-428-000 |
— | ||
|
4
|
4
18284-428-000
Band b sub muff
|
18284-428-000 |
— | ||
|
5
|
5
18291-HB2-900 Gasket, ex. pipe |
18291-HB2-900 |
from US $5.33 |
||
|
6
|
6
18292-167-890 Packing, protector |
18292-167-890 |
from US $2.89 |
||
|
7
|
7
18292-MM9-740 Gasket, protector |
18292-MM9-740 |
from US $4.20 |
||
|
8
|
8
18292-429-405
Gasket a, muffler
|
18292-429-405 |
— | ||
|
9
|
9
18295-428-000 Pkg b muff |
18295-428-000 |
US $1.70 |
||
|
10
|
10
18300-434-007
Muffler comp.,ex.
|
18300-434-007 |
— | ||
|
11
|
11
18320-434-770
Pipe, ex.
|
18320-434-770 |
— | ||
|
12
|
12
18325-434-000
Protector, ex. pipe
|
18325-434-000 |
— | ||
|
13
|
13
18345-428-000
Protr,muffler
|
18345-428-000 |
— | ||
|
14
|
14
18371-434-000
Band, muffler
|
18371-434-000 |
— | ||
|
15
|
15
18391-MAM-000 Gasket a, muffler |
18391-MAM-000 |
from US $12.94 |
||
|
16
|
16
50355-428-000
Receiver,clch cab
|
50355-428-000 |
— | ||
|
17
|
17
93891-0601000 Screw-washer (6x10) |
93891-0601000 |
from US $0.52 |
||
|
18
|
18
93891-060-120-0 Screw-washer6X12 |
93891-060-120-0 |
from US $0.52 |
||
|
19
|
19
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
20
|
20
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
21
|
21
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
22
|
22
95701-080-200-0 Bolt, flange, 8x20 |
95701-080-200-0 |
from US $0.59 |
||
|
23
|
23
95728-080-350-0 Bolt frange 8x35 |
95728-080-350-0 |
US $0.74 |
