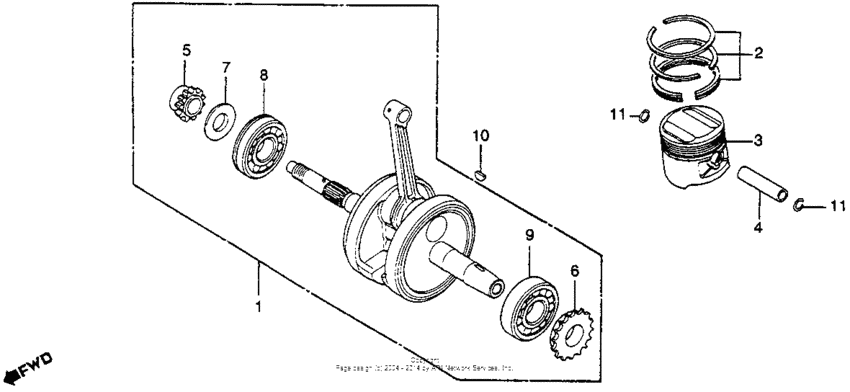

Piston + crankshaft Diagram Honda XR250
- Year
- 1980
- Model code
- XR250 A
- Sales region
- USA
- Frame
- ME015100001 -
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13000-471-000
Crankshaft
|
13000-471-000 |
— | ||
|
2
|
2
13011-471-003 Ring set (std) |
13011-471-003 |
US $57.02 |
||
|
2
|
2
13021-471-003
Ring set (os) (0.25)
(Optional). |
13021-471-003 |
— | ||
|
2
|
2
13031-471-003
Ring set (os) (0.50)
(Optional). |
13031-471-003 |
— | ||
|
3
|
3
13102-434-003
Piston (os) (0.25)
(Optional). |
13102-434-003 |
— | ||
|
3
|
3
13103-434-003
Piston (os) (0.50)
(Optional). |
13103-434-003 |
— | ||
|
3
|
3
13101-434-770
Piston (std)
|
13101-434-770 |
— | ||
|
4
|
4
13111-428-000
Pin,piston
|
13111-428-000 |
— | ||
| replacement | |||||
|
4
|
4
13111-471-000
Pin,piston
|
13111-471-000 |
— | ||
|
4
|
4
13111-471-000
Pin,piston
|
13111-471-000 |
— | ||
|
5
|
5
13621-428-300
Sprocket,drive
|
13621-428-300 |
— | ||
|
6
|
6
14312-428-300
Sprocket,timing
|
14312-428-300 |
— | ||
|
7
|
7
90455-428-000
Washer,23mm
|
90455-428-000 |
— | ||
|
8
|
8
91001-471-008
B/brg.rad.n/com
|
91001-471-008 |
— | ||
|
9
|
9
91030-950-003 B/brg rad n/com |
91030-950-003 |
US $45.55 |
||
|
10
|
10
94401-25180 Key, woodruff, 25x18Use up to Engine SN 5100878 |
94401-25180 |
from US $0.81 |
||
|
10
|
10
13331-357-000 Key, special woodruff, 25x18Use from Engine SN 5100879 |
13331-357-000 |
from US $4.74 |
||
|
11
|
11
9460119000 Clip, piston pin, 19mm |
9460119000 |
from US $0.44 |
||
