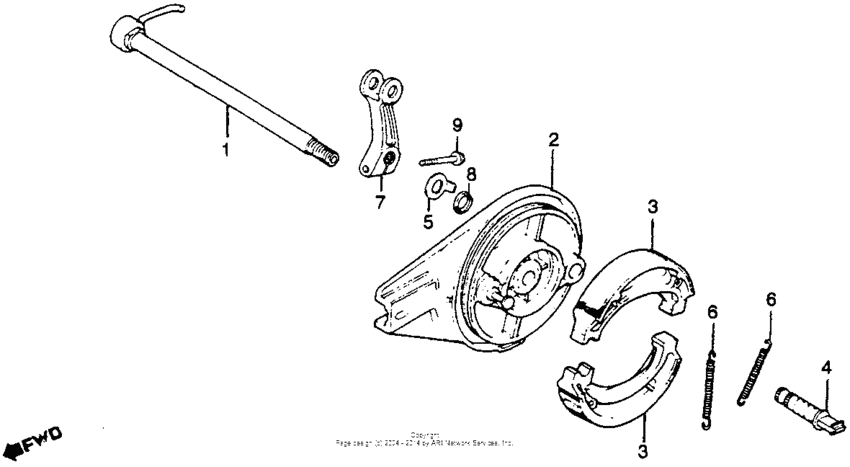

Rear brake panel Diagram Honda XR250
- Year
- 1980
- Model code
- XR250 A
- Sales region
- USA
- Frame
- ME015100001 -
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
06430-KBR-003 Shoe kit, brake |
06430-KBR-003 |
US $38.73 |
||
|
NI
|
NI
06430-428-003 Superceded |
06430-428-003 |
US $28.15 |
||
| replacement | |||||
|
NI
|
NI
06430-KBR-003 Shoe kit, brake |
06430-KBR-003 |
US $38.73 |
||
|
NI
|
NI
431A2-428-013 Set brake shoe |
431A2-428-013 |
US $28.15 |
||
| replacement | |||||
|
NI
|
NI
06430-KBR-003 Shoe kit, brake |
06430-KBR-003 |
US $38.73 |
||
|
1
|
1
42310-434-000
Axle, rr. wheel
|
42310-434-000 |
— | ||
|
2
|
2
43100-428-000
Panel, rr. brake
|
43100-428-000 |
— | ||
|
3
|
3
06430-KBR-003 Shoe kit, brake |
06430-KBR-003 |
US $38.73 |
||
|
3
|
3
43120-428-013 Shoe comp.,brake |
43120-428-013 |
US $28.15 |
||
| replacement | |||||
|
3
|
3
06430-KBR-003 Shoe kit, brake |
06430-KBR-003 |
US $38.73 |
||
|
4
|
4
43141-400-010 Cam, rr. brake |
43141-400-010 |
from US $14.80 |
||
|
5
|
5
43145-400-000 Indicator, rr. brake |
43145-400-000 |
from US $6.02 |
||
|
6
|
6
43151-110-000 Spring, brake shoe |
43151-110-000 |
from US $2.38 |
||
|
7
|
7
43410-434-000
Arm, rr. brake
|
43410-434-000 |
— | ||
|
8
|
8
45134-250-000 Dust seal, brake cam |
45134-250-000 |
from US $2.15 |
||
|
9
|
9
95701-060-250-0 BoltFLANGE, 6X25 |
95701-060-250-0 |
from US $0.59 |
||
