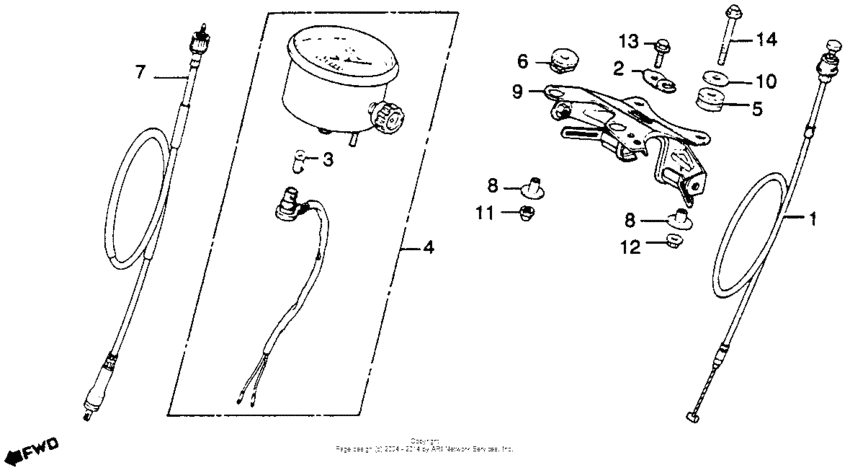

Speedometer + headlight stay Diagram Honda XR250
- Year
- 1980
- Model code
- XR250 A
- Sales region
- USA
- Frame
- ME015100001 -
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
34902-202-000 Bulb, dash (6v 3w) |
34902-202-000 |
from US $2.29 |
||
|
4
|
4
37200-434-672
Speedometer assy
|
37200-434-672 |
— | ||
|
5
|
5
37242-429-000
Rub,spdmt,mount
|
37242-429-000 |
— | ||
|
6
|
6
37242-434-000
Rub,spdmt mount
|
37242-434-000 |
— | ||
|
7
|
7
44830-461-770
Cable assy,spdmt
|
44830-461-770 |
— | ||
|
8
|
8
61104-428-000
Collar, fr. fender
|
61104-428-000 |
— | ||
| replacement | |||||
|
8
|
8
61104-428-010 Collar, fr. fender |
61104-428-010 |
from US $4.07 |
||
|
8
|
8
61105-428-000
Collar, rr. fender
|
61105-428-000 |
— | ||
|
8
|
8
90525-030-000 Washer b, handle holder setting |
90525-030-000 |
from US $2.59 |
||
|
9
|
9
61310-429-770
Stay, headlight
|
61310-429-770 |
— | ||
|
10
|
10
90563-355-000 Washer, wheel, 6mm |
90563-355-000 |
from US $2.22 |
||
|
11
|
11
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
||
|
12
|
12
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
14
|
14
95701-0606000 Bolt, flange, 6x60 |
95701-0606000 |
from US $0.49 |
||
