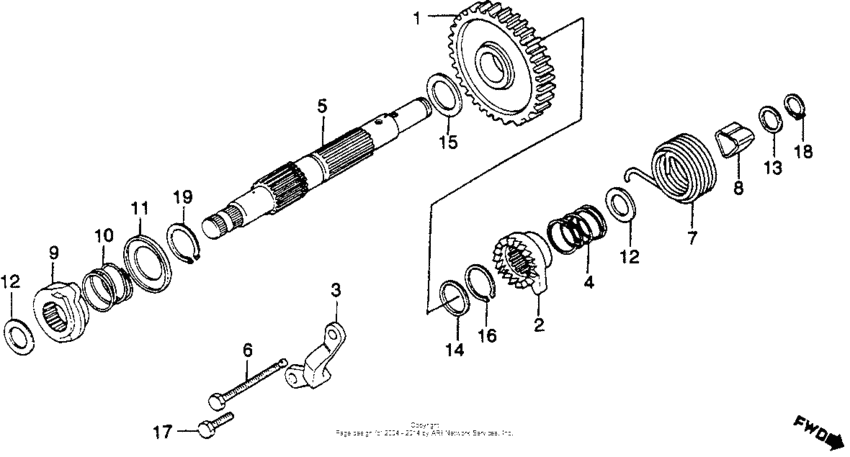

Kick starter spindle Diagram Honda XR250
- Year
- 1981
- Model code
- XR250R A
- Sales region
- USA
- Frame
- JH2ME010*BM200022 - JH2ME010*BM202531
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28211-428-030
Pinion,kick start
|
28211-428-030 |
— | ||
|
2
|
2
28213-428-000
Ratchet,kick stat
|
28213-428-000 |
— | ||
|
3
|
3
28215-428-000
Plate,kick stop
|
28215-428-000 |
— | ||
|
4
|
4
28223-314-000
Spring,kickstart
|
28223-314-000 |
— | ||
|
5
|
5
28250-428-030
Spdl,kick start.
|
28250-428-030 |
— | ||
|
6
|
6
28254-428-000
Pin,kick spg hook
|
28254-428-000 |
— | ||
|
7
|
7
28261-428-000
Spg,kick starter
|
28261-428-000 |
— | ||
|
8
|
8
28265-428-000
Collar,kick stat
|
28265-428-000 |
— | ||
|
9
|
9
28272-428-000
Cam,kick shaft
|
28272-428-000 |
— | ||
|
10
|
10
28283-428-000
Spring, cam reset
|
28283-428-000 |
— | ||
|
11
|
11
28284-428-000 Seat |
28284-428-000 |
US $3.47 |
||
|
12
|
12
90452-701-000 Washer, thrust, 18mm |
90452-701-000 |
from US $1.70 |
||
|
13
|
13
90453-235-000 Washer, thrust, 16mm |
90453-235-000 |
from US $2.74 |
||
|
14
|
14
90453-428-000 Washer, thrust, 22mm |
90453-428-000 |
US $4.44 |
||
|
15
|
15
90456-323-000 Washer, thrust, 22mm |
90456-323-000 |
US $3.85 |
||
|
16
|
16
90601-329-000 Circlip (22mm) |
90601-329-000 |
from US $3.18 |
||
|
17
|
17
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
18
|
18
9451016000 Circlip, external, 16mm |
9451016000 |
from US $0.52 |
||
|
19
|
19
9451024000 Circlip (24mm) |
9451024000 |
US $0.59 |
