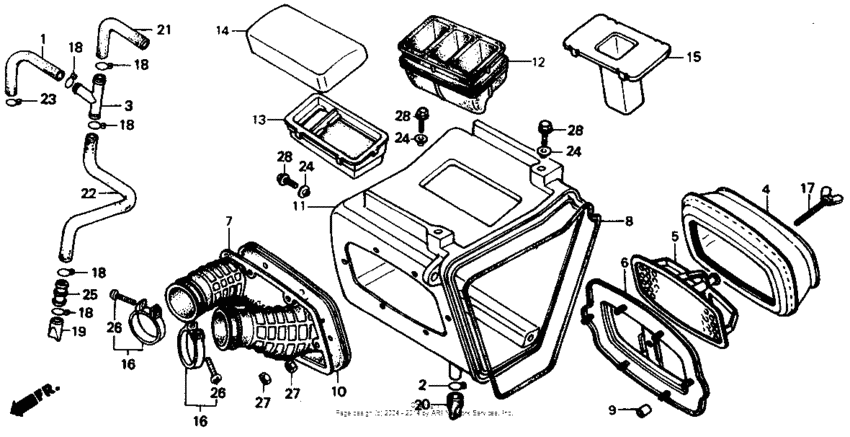

Air cleaner 84-85 Diagram Honda XR250
- Year
- 1984
- Model code
- XR250R A
- Sales region
- USA
- Frame
- JH2ME060*EK000004 - JH2ME060*EK006272
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15761-KK0-000
Tube, breather
|
15761-KK0-000 |
— | ||
|
2
|
2
15772-292-010 Clip, breather tube |
15772-292-010 |
from US $2.44 |
||
|
3
|
3
15772-376-000 Joint |
15772-376-000 |
from US $9.62 |
||
|
4
|
4
17213-KK0-000 Element, air cleaner |
17213-KK0-000 |
from US $31.13 |
||
|
5
|
5
17214-KK0-010
Holder, element
|
17214-KK0-010 |
— | ||
|
6
|
6
17216-KK0-000
Plate
|
17216-KK0-000 |
— | ||
|
7
|
7
17217-KK0-000 Plate, holder |
17217-KK0-000 |
from US $12.58 |
||
|
8
|
8
17222-MN4-405 Seal |
17222-MN4-405 |
from US $6.51 |
||
|
9
|
9
17221-KA4-300 Collar, connecting tube setting |
17221-KA4-300 |
from US $2.66 |
||
|
10
|
10
17222-KK1-000
Tube a/c conn
|
17222-KK1-000 |
— | ||
|
11
|
11
17230-KK0-000
Housing, air cleaner
|
17230-KK0-000 |
— | ||
|
12
|
12
17240-KK0-000
Duct
|
17240-KK0-000 |
— | ||
|
13
|
13
17241-KK0-000
Cap, in. duct
|
17241-KK0-000 |
— | ||
|
14
|
14
17242-KK0-000
Cover, in. duct
|
17242-KK0-000 |
— | ||
|
16
|
16
17255-KK0-000 Band a |
17255-KK0-000 |
from US $3.26 |
||
| replacement | |||||
|
16
|
16
9501850250 Band, air cleaner connecting tube (50) |
9501850250 |
from US $3.26 |
||
|
16
|
16
9501850250 Band, air cleaner connecting tube (50) |
9501850250 |
from US $3.26 |
||
|
17
|
17
17291-KA4-700
Bolt, a/clnr elem
|
17291-KA4-700 |
— | ||
|
18
|
18
17316-611-000 Clip, breather tube |
17316-611-000 |
from US $2.29 |
||
|
19
|
19
17358-170-000 Tube, drain |
17358-170-000 |
from US $3.11 |
||
|
20
|
20
17359-KK0-000 Tube, drain |
17359-KK0-000 |
from US $4.59 |
||
|
21
|
21
17373-KK0-000
Tube a, breather
|
17373-KK0-000 |
— | ||
|
22
|
22
17374-KK0-000
Tube b, breather
|
17374-KK0-000 |
— | ||
|
23
|
23
17724-102-700 ClipSUB TANK HOSE |
17724-102-700 |
from US $2.44 |
||
|
24
|
24
90522-028-000 Washer, chain case setting |
90522-028-000 |
from US $1.92 |
||
|
25
|
25
91463-393-780 Joint, tube |
91463-393-780 |
from US $1.92 |
||
|
26
|
26
93500-050320G Screw, pan (5x32) |
93500-050320G |
from US $0.44 |
||
|
27
|
27
94002-050-000-S NutHEX., 5MM |
94002-050-000-S |
from US $0.37 |
||
|
28
|
28
96001-060-100-0 BoltFLANGE, 6X10 |
96001-060-100-0 |
from US $0.59 |
||
