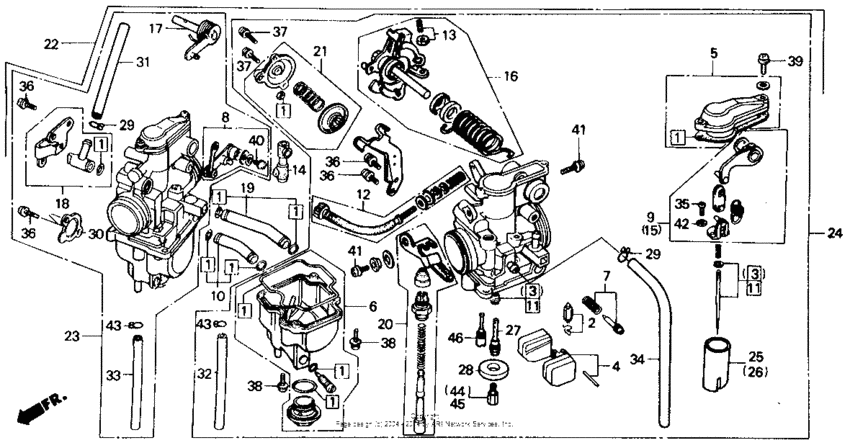

Carburetor 84-85 Diagram Honda XR250
- Year
- 1984
- Model code
- XR250R A
- Sales region
- USA
- Frame
- JH2ME060*EK000004 - JH2ME060*EK006272
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-KF0-305 Gasket set |
16010-KF0-305 |
from US $28.42 |
||
|
2
|
2
16011-KCK-910 Valve set, float |
16011-KCK-910 |
from US $41.85 |
||
|
3
|
3
16012-KK1-004
Ndl,set,prim.jet
|
16012-KK1-004 |
— | ||
|
4
|
4
16013-KG0-891
Float set
|
16013-KG0-891 |
— | ||
|
5
|
5
16014-KF0-004
Top set
|
16014-KF0-004 |
— | ||
|
6
|
6
16015-KK1-004
Chamber set, float
|
16015-KK1-004 |
— | ||
|
7
|
7
16016-MG3-004
Screw set
|
16016-MG3-004 |
— | ||
|
8
|
8
16017-KF0-004
Lever set, link
|
16017-KF0-004 |
— | ||
|
9
|
9
16018-KF0-004
Arm set
|
16018-KF0-004 |
— | ||
|
10
|
10
16026-KF0-004
Joint set, fuel
|
16026-KF0-004 |
— | ||
|
11
|
11
16027-KK1-004
Ndl, secondary jet
|
16027-KK1-004 |
— | ||
|
12
|
12
16028-KF0-004
Screw set
|
16028-KF0-004 |
— | ||
|
13
|
13
16029-KK1-004
Screw set
|
16029-KK1-004 |
— | ||
|
14
|
14
16030-KF0-004 Holder set, adj. |
16030-KF0-004 |
US $63.33 |
||
|
15
|
15
16031-KF0-004
Arm set,link
|
16031-KF0-004 |
— | ||
|
16
|
16
16032-KK1-004
Link set
|
16032-KK1-004 |
— | ||
|
17
|
17
16035-KG0-004
Link set
|
16035-KG0-004 |
— | ||
|
18
|
18
16037-MG3-004
Joint set, fuel
|
16037-MG3-004 |
— | ||
|
19
|
19
16042-KK0-771
Joint set, fuel
|
16042-KK0-771 |
— | ||
|
20
|
20
16046-KF0-004
Valve set, starter
|
16046-KF0-004 |
— | ||
|
21
|
21
16048-MG2-305
Valve set, air cut
|
16048-MG2-305 |
— | ||
|
22
|
22
16100-KK1-014
Carburetor assy.
Use up to Engine SN 5007215 |
16100-KK1-014 |
— | ||
|
23
|
23
16101-KK1-004
Carburetor assy., r.
|
16101-KK1-004 |
— | ||
|
24
|
24
16102-KK1-004
Carburetor assy., l.
|
16102-KK1-004 |
— | ||
|
25
|
25
16111-KE5-004
Valve,seco thrott
|
16111-KE5-004 |
— | ||
|
26
|
26
16112-KK1-004
Valve
|
16112-KK1-004 |
— | ||
|
27
|
27
16165-KK1-004
Holder, needle jet
|
16165-KK1-004 |
— | ||
|
28
|
28
16168-KF0-004
Holder, jet
|
16168-KF0-004 |
— | ||
|
29
|
29
16179-KE5-004 Clip, tube |
16179-KE5-004 |
US $2.63 |
||
|
30
|
30
16193-KB4-671
Cover, air cut valve
|
16193-KB4-671 |
— | ||
|
31
|
31
16195-KE8-405
Tube
|
16195-KE8-405 |
— | ||
|
32
|
32
16198-ML4-405
Tube
|
16198-ML4-405 |
— | ||
|
33
|
33
16198-ML4-405
Tube
|
16198-ML4-405 |
— | ||
|
34
|
34
16199-MG3-405
Pipe, air vent
|
16199-MG3-405 |
— | ||
|
35
|
35
93500-030080H Screw, pan, 3x8 |
93500-030080H |
from US $0.37 |
||
|
36
|
36
93892-040-100-8 Screw-washer4X10 |
93892-040-100-8 |
from US $0.49 |
||
|
37
|
37
93892-040-120-8 Screw-washer4X12 |
93892-040-120-8 |
from US $0.49 |
||
|
38
|
38
93892-040-140-8 Screw-washer4X14 |
93892-040-140-8 |
from US $0.44 |
||
|
39
|
39
93892-040-160-8 Screw-washer4X16 |
93892-040-160-8 |
from US $0.44 |
||
|
40
|
40
93892-040-200-8 Screw-washer4X20 |
93892-040-200-8 |
US $0.44 |
||
|
41
|
41
93892-050-140-8 Screw-washer5X14 |
93892-050-140-8 |
from US $0.47 |
||
|
42
|
42
94111-03800 WasherSPRING, 3MM |
94111-03800 |
from US $0.37 |
||
|
43
|
43
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
||
|
44
|
44
99113-GHB1080 Jet, main (#108) |
99113-GHB1080 |
from US $6.66 |
||
|
45
|
45
99113-GHB1020 Jet, main (#102) |
99113-GHB1020 |
from US $6.66 |
||
|
46
|
46
99103-MG3-0450
Jet,slow #45
|
99103-MG3-0450 |
— |
