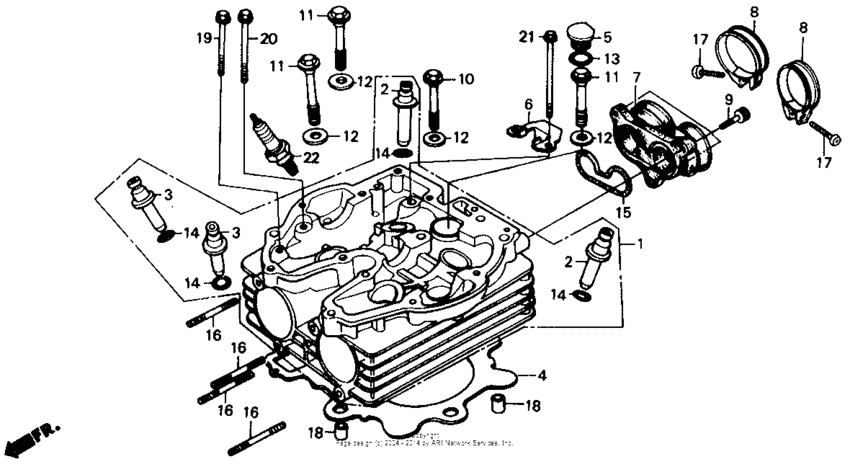

Cylinder head 84-85 Diagram Honda XR250
- Year
- 1984
- Model code
- XR250R A
- Sales region
- USA
- Frame
- JH2ME060*EK000004 - JH2ME060*EK006272
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12200-KK1-010
Cylinder head
|
12200-KK1-010 |
— | ||
|
2
|
2
12231-KK0-305
Guide, Int. valve
|
12231-KK0-305 |
— | ||
|
3
|
3
12241-KK0-305
Guide, ex. valve
|
12241-KK0-305 |
— | ||
|
4
|
4
12251-KR6-003
Gasket, cyl hd
|
12251-KR6-003 |
— | ||
|
5
|
5
12345-KK0-000
Cap, head hole
|
12345-KK0-000 |
— | ||
|
6
|
6
14515-KK0-010
Plate
|
14515-KK0-010 |
— | ||
|
7
|
7
16211-KK1-000
Ins carburetor
|
16211-KK1-000 |
— | ||
|
8
|
8
16223-KS5-000 Band, insulator |
16223-KS5-000 |
from US $8.14 |
||
|
9
|
9
90001-KK0-000
Bolt, socket (6x22)
|
90001-KK0-000 |
— | ||
|
10
|
10
90081-KK0-000 Bolt, flange, 10x81 |
90081-KK0-000 |
from US $11.40 |
||
|
11
|
11
90082-KK0-000
Bolt, flange (10x72)
|
90082-KK0-000 |
— | ||
|
12
|
12
90410-KR0-000 Washer (10mm) |
90410-KR0-000 |
from US $3.26 |
||
|
13
|
13
91301-MC7-003 O-ring (15.8x2.5) |
91301-MC7-003 |
from US $4.28 |
||
|
14
|
14
91301-200-000 O-ring (10x1.6) |
91301-200-000 |
from US $2.37 |
||
|
15
|
15
91302-KK1-003 O-ring |
91302-KK1-003 |
US $9.60 |
||
|
16
|
16
92700-06032-0B BoltSTUD, 6X32 |
92700-06032-0B |
from US $0.52 |
||
|
17
|
17
93500-050-200-A ScrewPAN, 5X20 |
93500-050-200-A |
from US $0.37 |
||
|
18
|
18
94301-12200 Dowel pin12X20 |
94301-12200 |
from US $1.04 |
||
|
19
|
19
96001-0607000 Bolt, flange (6x70) |
96001-0607000 |
from US $0.89 |
||
|
20
|
20
96001-0608007 Bolt, flange (6x80) |
96001-0608007 |
from US $0.89 |
||
|
21
|
21
96001-0609000 Bolt, flange (6x90) |
96001-0609000 |
from US $1.04 |
||
|
22
|
22
98061-58616 Spark plug (NGK DPR8Z)(Optional). |
98061-58616 |
from US $4.93 |
||
|
22
|
22
98061-58626 Spark plug (Denso X24GPR-U)(Optional). |
98061-58626 |
from US $5.44 |
||
|
22
|
22
98061-59616 Spark plug (NGK DPR9Z) |
98061-59616 |
from US $5.51 |
||
|
22
|
22
98061-59626 Spark plug (Denso X27GPR-U) |
98061-59626 |
from US $5.44 |
