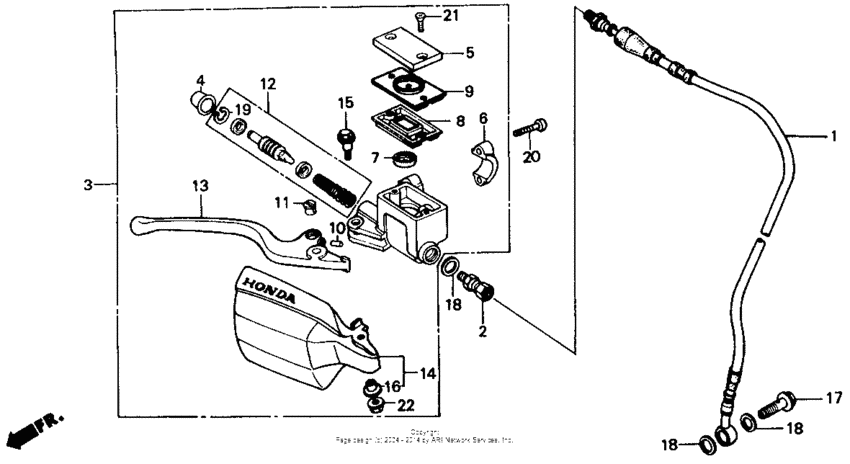

Front brake master cylinder 84-85 Diagram Honda XR250
- Year
- 1984
- Model code
- XR250R A
- Sales region
- USA
- Frame
- JH2ME060*EK000004 - JH2ME060*EK006272
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45125-KK1-003
Hose,fr.brake
|
45125-KK1-003 |
— | ||
|
2
|
2
45127-MG3-013
Joint, brake hose
|
45127-MG3-013 |
— | ||
|
3
|
3
45500-MG3-771
*45510-mg3-407
|
45500-MG3-771 |
— | ||
|
4
|
4
45504-410-003 Boot |
45504-410-003 |
from US $4.90 |
||
|
5
|
5
45513-MG3-672
Cap,mas.cylinder
|
45513-MG3-672 |
— | ||
|
6
|
6
45517-166-006 Holder |
45517-166-006 |
from US $11.81 |
||
|
7
|
7
45518-MG3-016 Separator |
45518-MG3-016 |
from US $6.66 |
||
|
8
|
8
45520-MG7-006 Diaphragm |
45520-MG7-006 |
from US $7.70 |
||
|
10
|
10
45526-KK1-771
Push,rod
|
45526-KK1-771 |
— | ||
|
11
|
11
45527-MG3-006
Pin,adjust
|
45527-MG3-006 |
— | ||
|
12
|
12
45530-HB9-006 Master cylinder set |
45530-HB9-006 |
US $57.41 |
||
|
13
|
13
53175-MG3-000
Lever,r.strg hndl
|
53175-MG3-000 |
— | ||
| replacement | |||||
|
13
|
13
53175-MG3-405
Lever,r strg hndl
|
53175-MG3-405 |
— | ||
|
13
|
13
53175-MG3-405
Lever,r strg hndl
|
53175-MG3-405 |
— | ||
|
14
|
14
53180-KF0-770ZA
Guard,r knu*r119*
|
53180-KF0-770ZA |
— | ||
|
15
|
15
90113-KF0-770 Bolt |
90113-KF0-770 |
from US $3.85 |
||
|
16
|
16
90127-KF0-770 Collar, 6x4 |
90127-KF0-770 |
from US $2.72 |
||
|
17
|
17
90145-KM3-751 Bolt, oil (10x22) |
90145-KM3-751 |
from US $9.18 |
||
|
18
|
18
90545-300-000 Washer |
90545-300-000 |
from US $1.21 |
||
|
19
|
19
90651-MA5-671 Circlip |
90651-MA5-671 |
from US $2.59 |
||
|
20
|
20
93500-060-250-A ScrewPAN, 6X25 |
93500-060-250-A |
from US $0.52 |
||
|
21
|
21
93600-040-120-G Screw, flat, 4x12 |
93600-040-120-G |
from US $0.37 |
||
|
22
|
22
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
