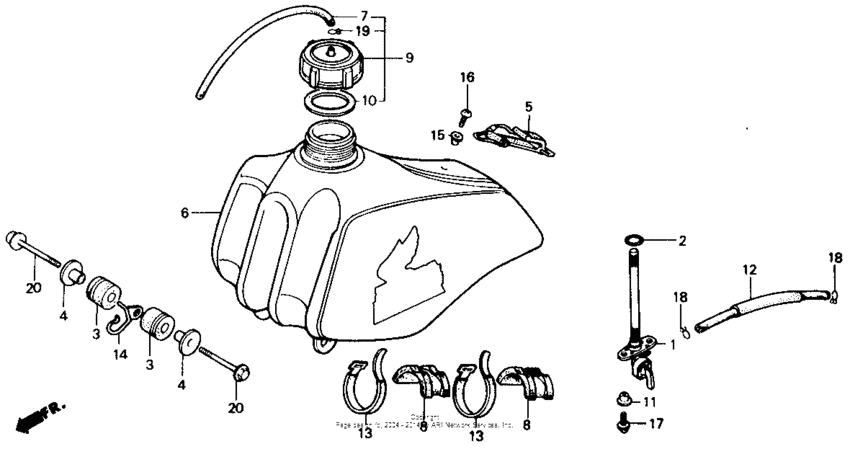

Fuel tank 84-85 Diagram Honda XR250
- Year
- 1984
- Model code
- XR250R A
- Sales region
- USA
- Frame
- JH2ME060*EK000004 - JH2ME060*EK006272
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-KT0-831 Petcock assy. |
16950-KT0-831 |
from US $36.85 |
||
|
2
|
2
16997-467-000 O-ring, 11.8x3.55 |
16997-467-000 |
from US $2.07 |
||
|
3
|
3
17508-KA3-710 Rubber |
17508-KA3-710 |
from US $5.92 |
||
|
4
|
4
17509-KA3-710 Collar |
17509-KA3-710 |
from US $7.25 |
||
|
5
|
5
17516-GF5-000 Band, rr. tank |
17516-GF5-000 |
from US $21.28 |
||
|
6
|
6
17520-KK0-000ZA
Tk sub, fuel *r119*
|
17520-KK0-000ZA |
— | ||
|
7
|
7
17521-429-000 Tube |
17521-429-000 |
from US $5.33 |
||
|
8
|
8
17611-KA2-000
Rubber, fr. tank
|
17611-KA2-000 |
— | ||
|
9
|
9
17620-MA0-405
Cap, fuel tank
|
17620-MA0-405 |
— | ||
|
10
|
10
17624-467-020
Gasket
|
17624-467-020 |
— | ||
|
11
|
11
17626-467-000 Collar, fuel tank setting |
17626-467-000 |
from US $4.44 |
||
|
12
|
12
17681-KC2-000
Tube, fuel
|
17681-KC2-000 |
— | ||
|
13
|
13
32161-399-000 Band, cable |
32161-399-000 |
US $4.17 |
||
|
14
|
14
50255-KK0-000
Guide, cable
|
50255-KK0-000 |
— | ||
|
15
|
15
90129-463-770 Collar, reflector setting |
90129-463-770 |
from US $2.72 |
||
|
16
|
16
93500-060140A Screw, pan, 6x14 |
93500-060140A |
from US $0.44 |
||
|
17
|
17
93891-060-200-8 Screw-washer6X20 |
93891-060-200-8 |
from US $0.52 |
||
|
18
|
18
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
|
19
|
19
95002-50000 ClipTUBE(C9) |
95002-50000 |
from US $0.37 |
||
|
20
|
20
96001-060-400-0 BoltFLANGE, 6X40 |
96001-060-400-0 |
from US $0.74 |
