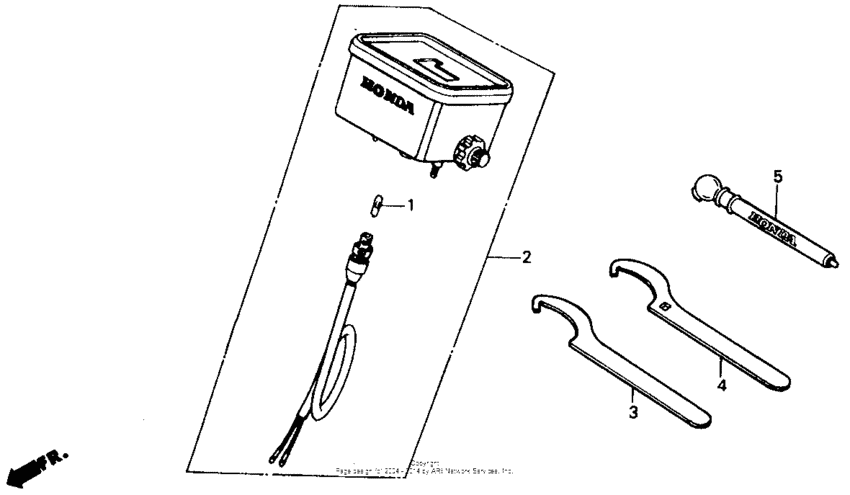

Pressure gauge Diagram Honda XR250
- Year
- 1984
- Model code
- XR250R A
- Sales region
- USA
- Frame
- JH2ME060*EK000004 - JH2ME060*EK006272
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34908-001-000 Bulb (6v1.5w) |
34908-001-000 |
from US $6.51 |
||
|
2
|
2
37270-429-810
Meter assy., trip
|
37270-429-810 |
— | ||
|
3
|
3
89201-KA4-811 Spanner a, pin |
89201-KA4-811 |
from US $37.40 |
||
|
4
|
4
89202-KA4-811 Spanner b, pin |
89202-KA4-811 |
from US $39.17 |
||
|
5
|
5
89301-KA4-811 Gauge, air pressure |
89301-KA4-811 |
from US $85.68 |
