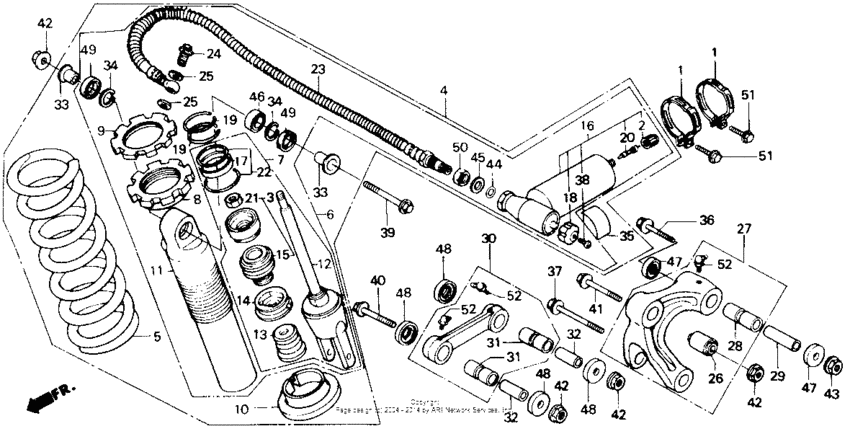

Shock absorber 84-85 Diagram Honda XR250
- Year
- 1984
- Model code
- XR250R A
- Sales region
- USA
- Frame
- JH2ME060*EK000004 - JH2ME060*EK006272
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50252-KK0-000
Band, sub-tank
|
50252-KK0-000 |
— | ||
|
2
|
2
51453-KK0-004 Cap, air valve |
51453-KK0-004 |
from US $2.70 |
||
|
3
|
3
524A2-KA3-731
Case & nut set
|
524A2-KA3-731 |
— | ||
|
4
|
4
52400-KK1-004
Shock absorber, rr.
|
52400-KK1-004 |
— | ||
|
5
|
5
52401-KK1-771
Spring, rr. shock
|
52401-KK1-771 |
— | ||
|
6
|
6
52410-KK0-014
Damper, rr.
|
52410-KK0-014 |
— | ||
|
7
|
7
52421-KK0-004
Rod, piston
|
52421-KK0-004 |
— | ||
|
8
|
8
52422-KA3-731 Seat, spring (upper) |
52422-KA3-731 |
US $35 |
||
|
9
|
9
52423-KA3-731 Nut, adjuster |
52423-KA3-731 |
from US $19.30 |
||
|
10
|
10
52424-KA3-731
Stopper, spring seat
|
52424-KA3-731 |
— | ||
|
11
|
11
52425-KK0-004
Case, rr.
|
52425-KK0-004 |
— | ||
|
12
|
12
52426-KT0-671
Rod
|
52426-KT0-671 |
— | ||
|
13
|
13
52427-KK0-004
Rubber, bumper
|
52427-KK0-004 |
— | ||
|
14
|
14
52428-KA3-731
Cap, case
|
52428-KA3-731 |
— | ||
|
15
|
15
52429-KA3-731 Case, rod guide |
52429-KA3-731 |
US $21.62 |
||
|
16
|
16
52430-KK0-014
Sub-tank assy.
|
52430-KK0-014 |
— | ||
|
17
|
17
52431-KA3-731
Ring, piston
|
52431-KA3-731 |
— | ||
|
18
|
18
52433-KK0-004
Dial, sub-tank
|
52433-KK0-004 |
— | ||
|
19
|
19
52435-KA3-731
Ring, snap
|
52435-KA3-731 |
— | ||
|
20
|
20
52437-KA3-731 Core, valve |
52437-KA3-731 |
from US $9.24 |
||
|
21
|
21
52438-KA3-731 Nut, hex. (12mm) |
52438-KA3-731 |
from US $4.74 |
||
|
22
|
22
52437-KA3-832
O-ring set
|
52437-KA3-832 |
— | ||
|
23
|
23
52440-KK0-004
Hose, joint
|
52440-KK0-004 |
— | ||
|
24
|
24
52441-KA3-731
Bolt, oil
|
52441-KA3-731 |
— | ||
|
25
|
25
52442-KA3-731 Washer, oil bolt |
52442-KA3-731 |
from US $2 |
||
|
26
|
26
52451-MA0-000 Bush, shock (lower) |
52451-MA0-000 |
from US $7.84 |
||
|
27
|
27
52460-KK0-010
Arm, shock absorber
|
52460-KK0-010 |
— | ||
|
28
|
28
52462-KF0-003
Bush, shock arm
|
52462-KF0-003 |
— | ||
|
29
|
29
52463-KF0-000
Collar
|
52463-KF0-000 |
— | ||
|
30
|
30
52470-KF0-010
Rod assy
|
52470-KF0-010 |
— | ||
|
31
|
31
52472-MA0-013 Bush |
52472-MA0-013 |
from US $14.01 |
||
|
32
|
32
52473-MA0-020 Collar |
52473-MA0-020 |
from US $7.84 |
||
|
33
|
33
52486-KA3-731
Colr, shock (upper)
|
52486-KA3-731 |
— | ||
|
34
|
34
52487-KA3-731
Ring, stopper
|
52487-KA3-731 |
— | ||
|
35
|
35
87516-KT1-901
Label, rr.
|
87516-KT1-901 |
— | ||
|
36
|
36
90128-KF0-000 Bolt, flange (12x90) |
90128-KF0-000 |
US $11.56 |
||
|
37
|
37
90129-KF0-000 Bolt, flange (10x77) |
90129-KF0-000 |
from US $9.03 |
||
|
38
|
38
52448-KA3-731
Screw, pan (3x6)
|
52448-KA3-731 |
— | ||
|
39
|
39
90150-KK0-000
Bolt, flange (10x83)
|
90150-KK0-000 |
— | ||
|
40
|
40
90151-KV6-910
Bolt,flange,10x69
|
90151-KV6-910 |
— | ||
|
41
|
41
90153-KK0-000 Bolt, flange (10x58) |
90153-KK0-000 |
from US $4.88 |
||
|
42
|
42
90304-GE8-003 Nut, u, 10mm |
90304-GE8-003 |
from US $1.94 |
||
|
43
|
43
90306-KF0-003 Nut, flange, 12mm |
90306-KF0-003 |
from US $3.26 |
||
|
44
|
44
90351-KK0-004
O-ring (1.9x9.8)
|
90351-KK0-004 |
— | ||
|
45
|
45
90501-KK6-700
Washer (10mm)
|
90501-KK6-700 |
— | ||
|
46
|
46
91077-KN5-004 Bearing (14mm) |
91077-KN5-004 |
from US $20.26 |
||
|
47
|
47
91262-KR8-750 Seal,cushion arm |
91262-KR8-750 |
from US $7.80 |
||
|
48
|
48
91262-KA3-712 Seal |
91262-KA3-712 |
from US $8.89 |
||
|
49
|
49
91351-KA3-731
Dust seal, rr. shock
|
91351-KA3-731 |
— | ||
|
50
|
50
94002-120-000-S NutHEX., 12MM |
94002-120-000-S |
from US $0.59 |
||
|
51
|
51
96001-0602200 Bolt, flange, 6x22 |
96001-0602200 |
from US $0.74 |
||
|
52
|
52
9620180000 Fitting (b.76s) |
9620180000 |
from US $1.85 |
