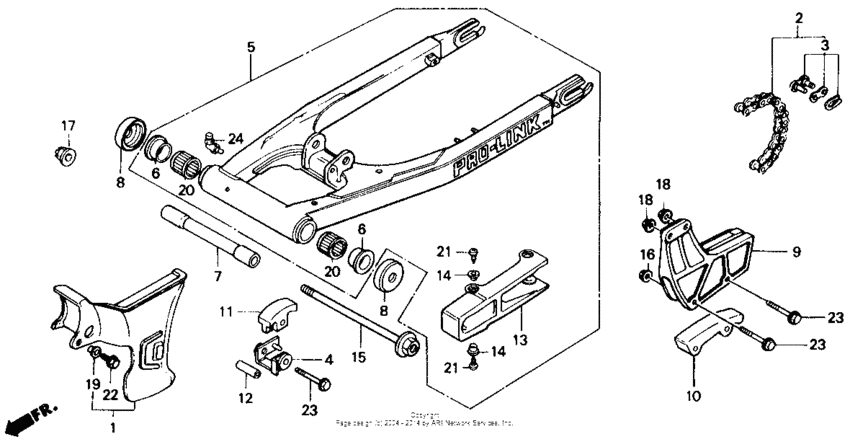

Swingarm 84-85 Diagram Honda XR250
- Year
- 1984
- Model code
- XR250R A
- Sales region
- USA
- Frame
- JH2ME060*EK000004 - JH2ME060*EK006272
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40510-KK0-000
Case, drive chain
|
40510-KK0-000 |
— | ||
|
2
|
2
405W3-MN1-505
Chain (520k0-108fj)
|
405W3-MN1-505 |
— | ||
|
3
|
3
40531-HB5-671
Master link
|
40531-HB5-671 |
— | ||
|
3
|
3
40531-KF0-005
Master link
|
40531-KF0-005 |
— | ||
|
3
|
3
40531-KF0-771 Master link |
40531-KF0-771 |
from US $7.24 |
||
|
4
|
4
50143-MA0-770
Stay, tensioner
|
50143-MA0-770 |
— | ||
|
5
|
5
52100-KK0-000
Swingarm assy., rr.
|
52100-KK0-000 |
— | ||
|
6
|
6
52109-430-300 Bush, pivot thrust |
52109-430-300 |
from US $13.17 |
||
|
7
|
7
52141-KK0-000 Collar, rr. |
52141-KK0-000 |
US $30.33 |
||
|
8
|
8
52144-356-005 Cap, dust seal |
52144-356-005 |
from US $14.21 |
||
|
9
|
9
52146-KT0-770
Guide, chain
|
52146-KT0-770 |
— | ||
|
10
|
10
52147-KF0-000 Slider, chain guide |
52147-KF0-000 |
from US $15.78 |
||
|
11
|
11
52155-KK0-005
Slipper,chain
|
52155-KK0-005 |
— | ||
|
12
|
12
52159-169-000
Collar, chain roller
|
52159-169-000 |
— | ||
|
13
|
13
52170-KF0-003
Slider, chain
|
52170-KF0-003 |
— | ||
|
14
|
14
52171-MC4-000 Collar, chain slider |
52171-MC4-000 |
from US $4.16 |
||
|
15
|
15
90121-KK0-000 Bolt, swingarm pivot |
90121-KK0-000 |
from US $37.26 |
||
|
16
|
16
90301-473-003 Nut, u, 6mm |
90301-473-003 |
from US $4.74 |
||
|
17
|
17
90305-GE8-003 Nut, u (14mm) |
90305-GE8-003 |
from US $4.29 |
||
|
18
|
18
90309-428-731 Nut, flange (self-lock) (m8x1.25) |
90309-428-731 |
from US $4.29 |
||
|
19
|
19
90512-300-000 Washer (6x20) |
90512-300-000 |
from US $2.22 |
||
|
20
|
20
91071-MA0-003 Bearing, rr. |
91071-MA0-003 |
from US $13.74 |
||
|
21
|
21
93901-26110 Screw |
93901-26110 |
from US $0.47 |
||
|
22
|
22
96001-060-140-0 BoltFLANGE, 6X14 |
96001-060-140-0 |
from US $0.59 |
||
|
23
|
23
96001-060-450-0 Bolt, flange (6x45) |
96001-060-450-0 |
from US $0.81 |
||
|
24
|
24
9620180000 Fitting (b.76s) |
9620180000 |
from US $1.85 |
